Netra[tm] CT 810

Codename: Makaha

N09-810
8-Slot cPCI Logic Enclosure

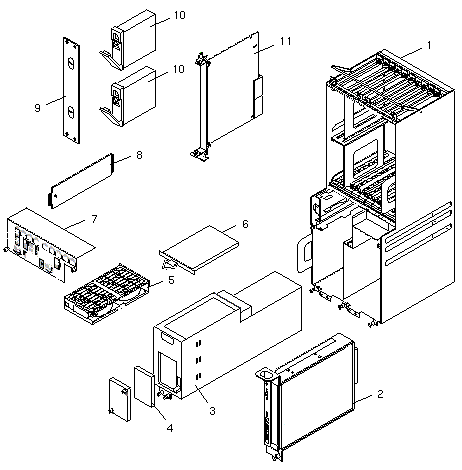

Table Legend
[F] = Field Replaceable Unit (FRU)
CODE PART # DESCRIPTION
1
-
540-5025 [F]
501-6119
8-Slot cPCI Drawer Assembly/FRU
8-Slot cPCI Backplane
2
2
540-4684 [F]
540-4409 [F]
10x DVD-ROM Assembly/FRU
DDS-4 Tape Drive Assembly/FRU
3
3
4
300-1535 [F]
300-1543 [F]
250-1672
420 Watt DC Input Power Supply Type D148
420 Watt AC Input Power Supply Type A174
Power Supply Air Filter, Option 7221
5 540-4928 [F] Fan Tray
6 250-1671 Air Filter, Option 7221
7 540-5010 [F] System Status Panel
8 501-6118 [F] System Control Board
9 340-7140 Disk Drive Slot Cover
10 540-4689 [F] 36.4GB 10000 RPM NEBS Disk Drive Assembly/FRU
11 501-6171 [F] Alarm Board
11 501-5618 [F] Front CPU Transition Board
NS Unknown Front Bezel

816-2482 Netra CT Server Service Manual

Boards

PART # DESCRIPTION
375-3025 [F]
375-3026 [F]
375-3114
375-3125
512MB Memory Module, Single Wide, 2"×4"
1GB Memory Module, Double Wide, 4"×5"
2GB Memory Module, Double Wide
1GB Memory Module, Single Wide
501-6403 [F]
501-6358 [F]
375-3025 [F]
501-6417
501-6358 [F]
375-3026 [F]
501-6417
501-6358 [F]
375-3114
1GB 650MHz CP2140 CPU
0MB 440MHz CP2140 CPU FRU
512B Memory Module, Double Wide
2GB 650MHz CP2140 CPU
0MB 440MHz CP2140 CPU FRU
1GB Memory Module, Double Wide
2GB 650MHz CP2140 CPU
0MB 440MHz CP2140 CPU FRU
2GB Memory Module, Double Wide
501-6438 [F]
501-5618 [F]
501-6437 [F]
501-6479 [F]
501-6124 [F]
Front CPU Transition Board, Netra CT 410
Front CPU Transition Board, Netra CT 810
Rear CPU Transition Board, Netra CT 410/810
Rear CPU Transition Board w PIM/PMC, Netra CT 410/810
Rear Alarm Transition Board, Netra CT 410/810
340-6399
340-6410
340-6483
340-6484
370-4003
340-7367
340-7368
Rear Power Input Filler Panel
Front Power Input Filler Panel
Rear Empty Drawer Filler Panel
Front Empty Drawer Filler Panel
cPCI Filler Panel (replaced by 340-7367 and 340-7368)
cPCI Rear Filler Panel (fails EMI - use 370-4003)
cPCI Front Filler Panel (fails EMI - use 370-4003)
