Sun Fire[tm] V880 Server - Full Components List

Boot PROM
Communication
Disks
Ethernet
Fan Tray
Fibre Channel
Graphics
IDPROM
I/O		 Memory
Miscellaneous
Power
Removable Media
SCSI
System Board
Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Boot PROM
Socket Manufacturing
Part #		 Patch
U3007 525-1793 112186
Communication
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 501-5856 [F] Remote System Control (RSC) 2 Board n/a
X1074A
   X3895A
   X3901A
   X3903A 		595-5149
   595-5191
   595-5426
   595-5428 		370-3868 [F]
   370-3922 [F]
   530-2869 [F]
   530-2871 [F] 		SCI Adapter (SCI/P)
   Cluster 4 port SCI switch
   Cluster SCI Cable, 2M
   Cluster SCI Cable, 7.5M		 n/a
   n/a
   n/a
   n/a
X1155A 605-1644 370-2728 [F] High Speed Serial Interface (HSI/P) 2.0 n/a
X1157A 605-1623 501-3028 [F] SunATM-155/MFiber 4.0 n/a
X1158A 605-1624 501-3027 [F] SunATM-155/UTP 4.0 n/a
X1159A 605-1625 501-3029 [F] SunATM-622/MFiber 4.0 n/a
X2156A 605-1644 375-0100 [F] Serial Asynchronous Interface (SAI/P) 3.0 n/a
X4810A 595-6121 540-4721 [F] Sun OC48 Packet Over Sonet * n/a
X4812A 595-6164 540-5207 [F]
530-2995
530-2996		 Sun OC48 Pack0et Over Sonet SRP Cable Kit
Cable, External Copper, SRP Data, 50cm
Cable, Internal Coaxial, SRP Clock		 n/a
n/a
n/a
X6762A 595-6296 375-3089 [F] Crypto Accelerator 1000 n/a
X1133A [S] 595-5655 375-0130 [F] Crypto Accelerator I n/a
* - Maximum of two X4810A cards per V880 server supported. X4810A must be installed in 66MHz PCI slot only.
Disks
Option # Top Level
Part #		 FRU(s) Manufacturing
Part #		 Description Substitute
Part #
X6724A 595-5494 540-4525 [F]
Spud Bracket FRU
w 1" Bkt 540-3024
w Plate 340-6640
or Plate 340-7269		 390-0035 Seagate ST336704FC (36.4GB - 10000 RPM) n/a
390-0070 Seagate ST336605FC (36.4GB - 10000 RPM) n/a
390-0137 Seagate ST336607FC (36.4GB - 10000 RPM) n/a
X6742A 595-5961 540-4905 [F]
Spud Bracket FRU
w 1" Bkt 540-3024
w Plate 340-6640
or Plate 340-7269		 390-0071 Seagate ST373405FC (73.4GB - 10000 RPM) n/a
390-0121 Seagate ST373307FC (73.4GB 10000 RPM FC-AL) n/a
X6751A
 595-6213
595-5855
595-6225
n/a
n/a
540-4525 [F] 		n/a
501-5993 [F]
390-0035 or 390-0070
 Storage Expansion Kit, includes: *
6 Slot FC Expansion Backplane
6 - 36.4GB FC Drives
 n/a
X6756A 595-6347
595-5855
595-6348		 n/a
n/a
540-4905 [F] 		n/a
501-5993 [F]
390-0071
Storage Expansion.Kit, includes: *
6 Slot FC Expansion Backplane
6 - 73.4GB FC Drives 		n/a
X6805A 595-6469 540-5408 [F]
Spud Bracket FRU
w 1" Bkt 540-3024
w Plate 340-6640 or 340-7269		 390-0071 Seagate ST373405FC (73.4GB - 10000 RPM) n/a
390-0098 Fujitsu MAN3735FC (73.4GB - 10000 RPM) n/a
390-0121 Seagate ST373307FC (73.4GB 10000 RPM FC-AL) n/a
n/a n/a n/a 230-1697 3 nylon washers to insulate screws from FC Disk Backplane, included with X6751A and X6756A, required n/a
Supported disk backplane cabling diagrams

* - Some Sun Fire V880s may have the following two parts installed, that together make up a 501-5993:
Ethernet
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1033A 595-4498 501-5019 [F] SunFastEthernet (FE/P) 501-4359 [F]
X1034A 605-1594 501-5406 [F] Sun Quad FastEthernet (QFE/P) 501-4366 [F]
X1141A 605-1601 501-4373 [F] Gigabit Ethernet 2.0 (GBE/P) n/a
X1150A 595-5812 501-5902 [F] Sun GigaSwift Ethernet UTP n/a
X1151A 595-5773 501-5524 [F] Sun GigaSwift Ethernet MMF n/a
Fan Tray
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 540-3614 [F] CPU Fan Tray n/a
n/a n/a 540-3615 [F] ASSY,PCI I/O Fan Tray n/a
n/a n/a 540-4025 [F] 80MM Motherboard Fan Tray n/a
Fibre Channel
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X6727A * 595-5853 375-3030 [F] PCI Dual FC Network Adapter+ n/a
X6767A 595-6425 375-3102 [F] 2GB PCI Single FC Network Adapter n/a
X6768A 595-6426 375-3108 [F] 2GB PCI Dual FC Network Adapter n/a
X6799A 595-5830 375-3019 [F] PCI Single FC Host Adapter n/a
* - X6727A is the only FC card that supports internal multipathing. If a separate, second FC loop is desired, an X6755A internal cable is required.
Graphics
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X3668A 595-5146 370-3753 [F] PGX32 8/24-Bit Color Frame Buffer n/a
X3685A 605-4651 375-3069 [F] XVR-500 Graphics Accelerator * n/a
X3768A 605-4639 370-4362 [F] PGX64 Card with Video Adapter n/a
X1089A [S] 595-5342 370-4072 [F] SunVideo Plus n/a
X3684A [S] 605-1647 375-3052 [F] Expert3D Lite PCI Frame Buffer * n/a
* - The X3684A and X3685A graphics accelerators require the 501-6524 or 501-5142-12 or higher I/O board and are supported only within factory shipped 900 MHz based processor systems.
- If X3684A is installed in a 66MHz PCI slot, the other 66MHz PCI slot must remain empty.
IDPROM
Socket Manufacturing
Part #		 Component Type Host ID
n/a n/a IDPROM (Comes installed on I/O board) 80xxxxxx
I/O
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a 599-2180 501-5142 [F] I/O Board 501-6524 [F]
n/a n/a 501-6524 [F] I/O Board 501-5142 [F]
Memory
Option # Top Level
Part #		 Manufacturing
Part #		 Option Description Previous
Part #		 Substitute
Part #
X7051A 595-5727 501-5030 [F] (512MB) 2GB (4 X 512MB DIMM kit) 540-5085 n/a
X7053A 595-5729 501-5401 [F] (256MB) 1GB (4 X 256MB DIMM kit) 540-5084 n/a
X7056A 595-6168 540-5086 [F] (1GB) 4 GB (4 × 1GB SDRAM DIMMs) * n/a 501-6109 [F]
n/a n/a 501-6109 [F] (1GB) 1GB SDRAM DIMMs * n/a 540-5086 [F]
X7050A [S] 595-5523 501-4489 [F] (128MB) 512MB (4 × 128MB SDRAM DIMMs) n/a n/a
* - 1GB DIMMs only supported on 900MHz CPU/Memory boards (X7028A).
Miscellaneous
Option # Top Level
Part #		 Manufacturing
Part #		 Option Description Substitute
Part #
X4347A 595-5721 540-4687 Sun Fire Cabinet Expansion Kit n/a
X9628A 595-5801 n/a Rack Mount Kit n/a
X9818A 595-4999 370-3675 72 inch Sun StorEdge Expansion Cabinet Front Door Kit ** n/a
SG-XARY030A 595-4706 540-3707 72 inch StorEdge Expansion Rack n/a
SF-XCAB n/a SF-CAB Sun Fire Cabinet * n/a
* - Requires X4347A Sun Fire Cabinet Expansion kit to allow rear door of cabinet to close.
** - X9818A is required when mounting 2 Sun Fire V880s in a Sun StorEdge 72 inch Expansion rack to meet FTR EMI requirements.
Note: If installing a Sun Fire V880 into a third party rack, the front and rear doors must be at least 63% open area for the V880 to cool properly.
Power
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a 595-5413 300-1353 [F] Power Supply n/a
n/a n/a 375-0071 [F] Power Distribution Board n/a
Removable Media
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X6168A 595-5558 390-0025 [F] 10X DVD-ROM Drive (standard configuration) n/a
X6283A 595-4165 370-2376 [F] 12GB 4mm DDS-3 Tape Drive (requires X913A FastWide to Narrow SCSI adapter) n/a
X6295A 595-5432 390-0028 [F] 20GB 4mm DDS-4 Tape Drive (68 pin wide connector) n/a
SCSI
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1032A 595-4258 501-5656 [F] Single-Ended Ultra/Wide SCSI (SunSwift PCI) 501-2741 [F]
X2222A 595-5624 501-5727 [F] Dual FastEthernet + Dual SCSI PCI Adapter n/a
X6540A 595-4399 375-0005 [F] Dual Single-Ended Ultra/Wide SCSI (PCI) n/a
X6541A 595-4414 375-0006 [F] Dual Differential Ultra/Wide SCSI (PCI) n/a
X6758A 595-5945 375-3057 [F] PCI Dual Ultra3 SCSI Host Adapter * n/a
* - The necessary drivers (SUNWqus & SUNWqusu) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see infodoc 47841 for details.
System Board
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X7028A * 595-6044 501-6334 [F] * Sun Fire CPU/Memory Board
w/ 2 UltraSPARC III 900MHz
w/ 4GB 2x 48v - 3.3V DC-DC Converter (FRU comes with no memory)		 n/a
X7047A 595-6211 n/a Sun Fire CPU/Memory Board
w/ 2 UltraSPARC III 750MHz
w/ 4GB RAM (16 × 256MB DIMMs)		 n/a
n/a 600-4914 501-4300 [F] Motherboard n/a
600-7947 501-6323 [F]
n/a n/a 501-5818 [F] Sun Fire CPU/Memory Board
w/ 2 UltraSPARC III 750MHz
w/ 0MB 1x 3.3V DC-DC Converter		 501-6360 [F]
n/a n/a 501-6360 [F] Sun Fire CPU/Memory Board
w/ 2 UltraSPARC III 750MHz
w/ 0MB 2x 3.3V DC-DC Converter		 501-5818 [F]
X7046A [S] 595-5531 n/a Sun Fire CPU/Memory Board
w/ 2 UltraSPARC III 750MHz
w/ 0GB 1x 3.3V DC-DC Converter		 n/a
* - OBP 4.6.7 or higher is recommended for X7028A / 501-6334. Mixing CPU speeds within a V880 is not supported.

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

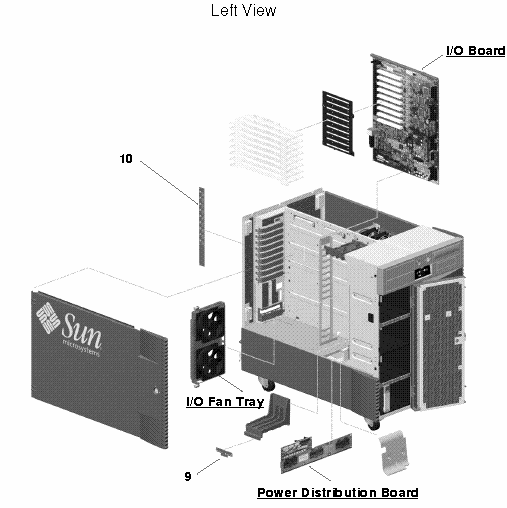

Exploded View



Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
1 370-3957 Lower Disk LED Flex Circuit
2 370-3958 Upper Disk LED Flex Circuit
3 540-3694 [F] System Status Assembly
4 330-2400 [F] 3.5 in RME Plastic Filler Panel
5 330-2399 [F] 5.25 in RME Plastic Filler Panel
6 340-5934 3.5 in RME Metal Filler Panel
7 340-5933 5.25 in RME Metal Filler Panel
8 340-4895 FC-AL Backplane Filler Panel
9 370-3962 [F] I/O Fan LED Flex Circuit
10 370-3964 [F] PCI Internal LED Flex Circuit
11 540-4454 [F] CPU/Memory Board Status Assembly
12 540-4453 [F] CPU Fan Status Assembly
13 340-6030 CPU Fan Tray Filler Panel
14 370-3960 [F] Motherboard Fan Status Flex Circuit
15 370-3963 [F] PCI External LED Flex Circuit
16 340-5519 Power Supply Filler Panel
NS 130-3034 [F] Video Connector Adapter, HD15F to 13W3M (Option X3872A)
NS 130-4332 FastWide to Narrow SCSI Adapter (Option X913A), Required for X6283A Tape Drive
NS 330-2014 [F] AC Power Key / Door Key
NS 330-3284 CPU/Memory Board Connection Cover
NS 340-6627 PCI Filler Panel
NS 530-1351 [F] Power Cord Kit, No.Amer./Asia 220 (Option X320A)
NS 530-1869 [F] Serial Port Y Splitter Cable (Option X985A)
NS 530-2357 [F] Video Connector Adapter, 13W3F to HD15M (Option X470A), can be substituted with 530-2917 [F]
NS 530-2453 [F] External SCSI Cable, HD68 to VHDC UltraSCSI, 2M (Option X3832A)
NS 530-2454 [F] External SCSI Cable, HD68 to VHDC, 4M (Option X3830A)
NS 530-2455 [F] External SCSI Cable, HD68 to VHDC UltraSCSI, 10M (Option X3831A)
NS 530-2548 [F] RME Power Cable
NS 530-2569 [F] RME Wide SCSI Cable
NS 530-2621 [F] FC-AL Data Cable (short, 23cm)
NS 530-2622 [F] FC-AL Data Cable (medium, 44cm)
NS 530-2623 [F] FC-AL Data Cable (long, 95cm)
NS 530-2745 [F] I/O Board Remote Sense Cable
NS 530-2746 [F] I/O Signal Cable
NS 530-2747 [F] Fan Power Cable
NS 530-2748 [F] RME Narrow SCSI Cable
NS 530-2816 [F] Motherboard Power Cable
NS 530-2818 [F] I/O Board Cable
NS 530-2835 [F] PCI Internal Status Cable
NS 530-2836 [F] PCI External Status Cable
NS 530-2837 [F] CPU/Memory Board Status Assembly Cable
NS 530-2838 [F] Fan Status Cable
NS 530-2839 [F] System Status Assembly Cable
NS 530-2840 [F] I2C Cable
NS 530-2841 [F] Base Backplane Power Cable
NS 530-2863 [F] Base / Expansion Power and ID Cable
NS 530-3056 [F] Internal Cable (If a separate, second FC loop is desired, This internal cable is required - Option X6755A)
NS 530-3096 Power Cord Jumper IEC 320-C13 to IEC 320-2-2/E (ie. reverse IEC 320-C13) 2.5M, (extends any geography power cord)
NS 537-1004 [F] Fibre Optical Cable, 2 Meter (Option X973A)
NS 537-1006 [F] Fibre Optical Cable, 15 Meter (Option X978A)
NS 537-1020 [F] Fibre Optical Cable, 5 Meter (Option X9715A)
NS 540-3606 Right Side Panel/Door
NS 540-3607 Left Side Panel/Door
NS 540-3608 Front Door with lock assembly
NS 540-4431
330-2580
230-1763
230-1769

CPU/Memory Board Air Baffle Assembly *
CPU/Memory Board Filler Panel / Air Baffle
Plunger/Fastner
Grommet

* - These yellow air baffles are shipped inside of every Sun Fire V880. See the Right Open View for installation and storage locations.
NS n/a 72 inch Sun StorEdge Expansion Cabinet (Option SG-XARY030A)
NS n/a Power Cord Kit, US/Asia (Option X311L)
Power Cord Kit, Continental Europe (Option X312L)
Power Cord Kit, Australia (Option X386L)
Power Cord Kit, UK (Option X317L)
Power Cord Kit, Switzerland (Option X314L)
Power Cord Kit, Italy (Option X384L)
Power Cord Kit, Denmark (Option X383L)
NS n/a
Country Kits
X3531A US / Universal / Canadian
X3532A French
X3533A German
X3534A Swiss-French
X3535A Swiss-German
X3536A Swedish
X3537A UK
X3538A US Unix
X3539A Japanese Unix
X3539A-O Japanese Unix (logoless)
X3554A Taiwanese
X3555A Korean
X3556A Japanese
X3556A-O Japanese (logoless)
X3558A UK Unix
X3559A European Unix
X3560A Norwegian
X3561A Portuguese
X3562A Spanish
X3563A Danish
X3564A Italian
X3565A Dutch
X3566A Australian
X3567A Finnish
X3568A European Universal
X3582A Chinese
X3583A Euro Cordless

WebToneWebToneWebToneWebTone
 Copyright 1994-2003 Sun Microsystems, Inc.,  901 San Antonio Road, Palo Alto, CA 94303 USA.  All rights reserved.
 Legal Terms Privacy Policy Feedback
