Sun Blade[tm] 1000 Workstation - Full Components List

Backplane
Boot PROM
Communication
CPU Module
Disks
Ethernet
Fibre Channel
Graphics
IDPROM
    Input Devices
Memory
Miscellaneous
Power
Removable Media
SCSI
System Board
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Backplane
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
n/a n/a 540-3258 [F]
330-2427
540-4182
501-4586
530-2488
Drive Bay Assembly w/ Backplane
Drive Bracket
FC-AL Backplane Assembly
FC-AL Backplane
FC-AL Cable
n/a
Boot PROM
Socket Manufacturing
Part #
Patch
U2103 525-1807
525-1899
111292
Communication
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1155A 605-1611 370-2728 [F] High Speed Serial Interface (HSI/P) 2.0 n/a
X1157A 605-1623 501-3028 [F] SunATM-155/MFiber 4.0 n/a
X1158A 605-1624 501-3027 [F] SunATM-155/UTP 4.0 n/a
X1159A 605-1625 501-3029 [F] SunATM-622/MFiber 4.0 n/a
X2156A 605-1644 375-0100 [F] Serial Asynchronous Interface (SAI/P) 3.0 n/a
X6762A 595-6296 375-3089 [F] Crypto Accelerator 1000 n/a
X1152A [S] 605-1608 370-2811 [F] FDDI/P SAS 2.0 n/a
X1153A [S] 605-1607 370-2812 [F] FDDI/P DAS 2.0 n/a
X2154A [S] 605-1643 375-0073 [F] Token Ring Interface (TRI/P) 5.0 n/a
CPU Module
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X7009A 595-6248 501-6002 [F] 900MHz UltraSPARC III Cu Module n/a
X6898A [S] 595-5786 501-4999 [F] 600MHz UltraSPARC III Module n/a
X6990A [S] 595-5787 501-5675 [F] 750MHz UltraSPARC III Module n/a
X7000A [S] 595-6007 501-6197 [F] 900MHz UltraSPARC III Module 501-5770 [F]
501-6286 [F]
Disks
Option # Top Level
Part #
Assembly FRU Manufacturing
Part #
Description Substitute
Part #
X6742A 595-5961 540-4905 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
w/ Plate 340-6640
or Plate 340-7269
390-0071 Seagate ST373405FC (73.4GB 10000 RPM FC-AL) n/a
390-0121 Seagate ST373307FC (73.4GB 10000 RPM FC-AL) n/a
X6724A 595-5494 540-4525 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
w/ Plate 340-6640
or Plate 340-7269
390-0035 Seagate ST336704FC (36.4GB 10000 RPM FC-AL) n/a
390-0070 Seagate ST336605FC (36.4GB 10000 RPM FC-AL) n/a
390-0137 Seagate ST336607FC (36.4GB 10000 RPM FC-AL) n/a
X6728A [S] 595-5740 540-4673 [F]

Spud Bracket FRU
w/ 1" Bkt 540-3024
w/ Plate 340-6640 or 340-7269
390-0011 Seagate ST318203FC (18.2GB 10000 RPM FC-AL) n/a
390-0034 Seagate ST318304FC (18.2GB 10000 RPM FC-AL) n/a
Ethernet
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1033A 595-4498 501-5019 [F] SunFastEthernet (FE/P) 501-4359 [F]
X1034A 605-1594 501-5406 [F] Sun Quad FastEthernet (QFE/P) 501-4366 [F]
X1141A 605-1601 501-4373 [F] Gigabit Ethernet 2.0 (GBE/P) n/a
X1150A 595-5812 501-5902 [F] Sun GigaSwift Ethernet UTP n/a
X1151A 595-5773 501-5524 [F] Sun GigaSwift Ethernet MMF n/a
Fibre Channel
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X6727A 595-5853 375-3030 [F] PCI Dual FC Network Adapter+ n/a
X6767A 595-6425 375-3102 [F] 2GB PCI Single FC Network Adapter n/a
X6768A 595-6426 375-3108 [F] 2GB PCI Dual FC Network Adapter n/a
X6799A 595-5830 375-3019 [F] PCI Single FC Host Adapter n/a
Graphics
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X3256A 605-4649 540-4298 [F] XVR-1000 Graphics Accelerator (FFB3) n/a
X3668A 595-5146 370-3753 [F] PGX32 8/24-Bit Color Frame Buffer n/a
X3685A 605-4651 375-3069 [F] XVR-500 Graphics Accelerator n/a
X3768A 605-4639 370-4362 [F] PGX64 8/24-Bit Color Frame Buffer n/a
X1089A [S] 595-5342 370-4072 [F] SunVideo Plus n/a
X3670A [S] 595-4605 501-5690 [F] Creator3D Series 3 (FFB2+) n/a
X3677A [S] 595-5406 501-5574 [F] Elite3D-m3 Series 2 Accelerator n/a
X3678A [S] 595-5239 370-3987 [F] Expert3D 24-Bit Color Frame Buffer n/a
X3679A [S] 595-5407 540-4313 [F] Elite3D-m6 Series 2 Accelerator n/a
X3684A [S] 605-1647 375-3052 [F] Expert3D Lite PCI Frame Buffer n/a
IDPROM
Socket Manufacturing
Part #
Component Type Host ID
U2101 525-1788 [F] SEEPROM xxxxxxxx
Input Devices
Option # Top Level
Part #(s)
Manufacturing
Part #(s)
Description Substitute
Part #(s)
X499A [S] 595-5343 [595-5343]
595-3723 [F]
370-1678 [F]
PCI Multimedia Kit
CCD Camera II
Microphone II
n/a
X3682A [S] 595-5526 370-4161 [F] Sun 1394 Visual Collaboration Kit n/a
Memory
Option # Top Level
Part #
Manufacturing
Part #
Option Description Previous
Part #
Substitute
Part #
X7051A 595-5727 501-5030 [F] (512MB) 2 GB (4 × 512MB SDRAM DIMMs) 540-5085 n/a
X7052A 595-5728 501-5031 [F] (1GB) 4 GB (4 × 1GB SDRAM DIMMs) n/a 501-6173 [F]
X7053A 595-5729 501-5401 [F] (256MB) 1 GB (4 × 256MB SDRAM DIMMs) 540-5084 n/a
X7061A 595-6680 501-6175 [F] (256MB CR1/LC1) 1 GB (4 × 256MB SDRAM DIMMs) n/a 501-5401 [F]
X7062A 595-6679 501-6174 [F] (512MB CR1/LC1) 2 GB (4 × 512MB SDRAM DIMMs) n/a 501-5030 [F]
X7063A 595-6835 501-6173 [F] (512MB CR1/LC1) 4 GB (4 × 1GB SDRAM DIMMs) n/a 501-5031 [F]
X7050A [S] 595-5523 501-4489 [F] (128MB) 512MB (4 × 128MB SDRAM DIMMs) n/a n/a
Miscellaneous
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X2132A 605-4646 375-3051 [F] SunPCi IIpro 733MHz coprocessor card n/a
X7042A 595-5694 370-4294 [F] SunPCi IIpro 128MB memory expansion n/a
X7044A 595-5695 370-4295 [F] SunPCi IIpro 256MB memory expansion n/a
X7045A 595-6010 370-4430 [F] SunPCi IIpro 512MB memory expansion n/a
n/a n/a 501-4155 [F] Audio Module n/a
n/a n/a 370-4666 [F] Smart Card Reader (double-sided) n/a
n/a n/a 370-3933 [F] Smart Card Reader (single-sided) 370-4666 [F]
X1400A 595-5578 370-4233 Extra smart cards, pack of 25 n/a
X1131A-64.2 [S] 605-1641 375-0095 [F] SunPCi I 400MHz n/a
X2131A [S] 605-1648 375-0131 [F] SunPCi II 600MHz, 64MB memory n/a
X7041A [S] 370-3870 370-3800 [F] SunPCi I 64MB memory expansion n/a
X7035A [S] 370-3860 370-3801 [F] SunPCi I 128MB memory expansion n/a
Power - DC
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
n/a n/a 300-1357 [F] Sony 660 Watt Power Supply n/a
Removable Media
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X6006A 595-5672 370-2730 [F] Manual Eject Triple Density Floppy n/a
X6168A 595-5558 390-0025 [F] 10X DVD-ROM Drive n/a
X6282A 595-4163 370-2377 [F] 12-24GB 4 mm DDS-3 Tape Drive n/a
X6295A 595-5431 390-0028 [F] 20-40GB 4 mm DDS-4 Tape Drive n/a
SCSI
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1032A 595-4258 501-5656 [F] Single-Ended Ultra/Wide SCSI (SunSwift PCI) 501-2741 [F]
X2222A 595-5624 501-5727 [F] Dual FastEthernet + Dual SCSI PCI Adapter n/a
X5010A 595-5377 375-0097 [F] Single-Channel Single-Ended Ultra/Wide SCSI (PCI) n/a
X6540A 595-4399 375-0005 [F] Dual Single-Ended Ultra/Wide SCSI (PCI) n/a
X6541A 595-4414 375-0006 [F] Dual Differential Ultra/Wide SCSI (PCI) n/a
X6758A 595-5945 375-3057 [F] PCI Dual Ultra3 SCSI Host Adapter * n/a
* - The necessary drivers (SUNWqus & SUNWqusu) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see infodoc 47841 for details.
System Board
Option # Manufacturing
Part #
Description Substitute
Part #
n/a 501-6230 [F] 0MB FRU (SCHIZO >=2.2) 501-5938 [F]
n/a 501-5938 [F] 0MB FRU (SCHIZO 2.2) 501-6230 [F]
n/a 501-4143 [F] 0MB FRU (SCHIZO <=2.1) 501-5938 [F]

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

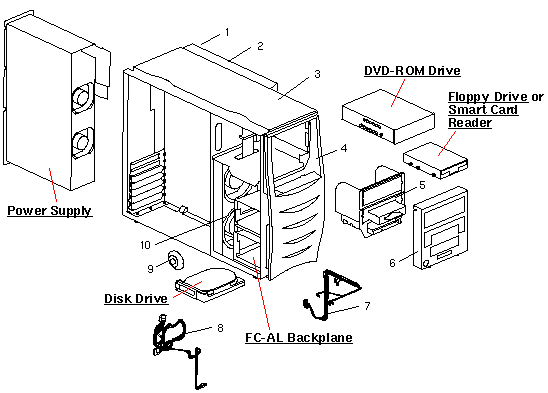

Exploded View



Table Legend
[F] = Field Replaceable Unit (FRU)

CODE MANUFACTURING
PART #
DESCRIPTION
1 599-2144
540-3256
540-3447
330-4033
330-4034
340-4036
340-4037
540-4477
540-4136
330-2705
540-4137
330-2706
330-2983
Chassis Assembly
Chassis Assembly
Chassis Housing Assembly
Chassis Front
Chassis Rear
I/O Panel
Peripheral Bay Shelf
Receiving Chassis
Shroud
CPU Shroud
Shroud Cover
CPU Shroud Cover
Processor Module Slot Filler Panel
2 330-2313 Right Side Cover, Dove Grey (<=330-2313-10)
3 330-2315 Top Cover, Dove Grey (<=330-2315-10)
4 540-3448 Curved Front Bezel Assembly, Purple
5 540-3265
340-4067
340-4068
340-4764
540-3681
340-4858
340-4859
Peripheral Assembly
3 1/2" Filler Panel
5 1/4" Filler Panel
5 1/4" Filler Panel with 3 1/2" Cutout
Peripheral Bracket with Faceplate
Bracket
Faceplate
6 540-3873
330-2714
330-2715
330-2324
330-2510
330-2404
330-2323
Peripheral Bezel Assembly
5 1/4" Filler Panel
3 1/2" Filler Panel
Lightpipe (not replaceable)
5 1/4" Filler Panel with 3 1/2" Cutout
Bezel (not replaceable)
Power Button (not replaceable)
7 530-2583 [F] Interlock, LED, Power Switch, and Speaker Cable
8 530-2582 [F] Peripheral DC Power Cable
9 370-1579 [F] Speaker
10 370-3718 [F]
330-2416
120 mm Fan (×2)
Fan Bracket
NS 150-2850 [F] Lithium Battery
NS 150-3112 [F] On/Off Switch
NS 150-3114 [F] Interlock Switch
NS 240-2750 PCI Filler Panel
NS 340-3559 Audio Module Filler Panel
NS 330-2321 Foot
NS 330-2937 Torque Tool Carrier
NS 530-2068 [F] DB25 to 36-Pin Centronics Parallel Cable, 5M
NS 530-2093 [F] Shielded RJ45 to RJ45 Cable, 4M
NS 530-2346 [F] Floppy Data Cable
NS 530-2881 [F] Glow-Go Cable
NS 540-2540 [F] Lockbox
NS
-
-
540-4696 [F]
540-4137
540-4136
CPU Module Shroud Assembly
CPU Module Shroud Cover
CPU Module Shroud
NS 540-3257 Left Cover Assembly, Dove Grey
NS 560-2613 [F]
530-2688
530-2944
Cable Service Kit
SCSI Data Cable
Smart Card Reader Cable, 20"
