Sony CDU-8012 (SunCD)
Sun-4/330/370/390/470/490
SS600MP / SS1000 / SC2000
Options 558 / 559
| 370-1312 |
370-1347 |
| Lt Grey Bezel |
Black Bezel |

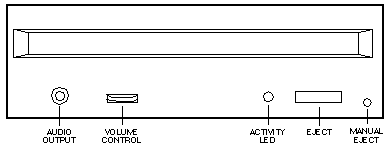

Front View

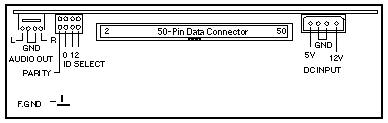

Rear View
 |
In the Desktop SunCD Plus Pack, orient the Flex Cable
as shown, and plug it into ID SELECT 0 1 2. |
 |
In the Multi-Tape Backup Tray and SC2000, orient the Cable
as shown, and plug it into ID SELECT 0 1 2. |
| JUMPER |
SETTING |
DESCRIPTION |
| 1, 2 |
In |
SCSI ID 6 |
| Parity |
In |
Enable parity |
Power
- 0.5 Amps @ +5Vdc
- 0.5 Amps @ +12Vdc
- 8.5 Watts
Notes
- The Sun CD-ROM requires 1.0 SunCD for SunOS 4.0.3c.
- Use 370-1347-03 when mounted on-end in the SS630MP.
Last updated: December 2, 1996
|
