60MB 1/4" Tape Drive

Sun-4/260/280/360/380

Options 515 / 514 / 516

370-1076 370-1103
Wangtech
5099EN24		 Wangtech
5099EN24
Archive
5945C

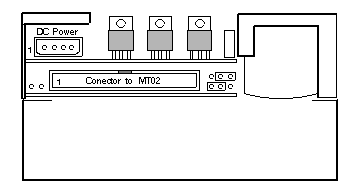

Rear View of Wangtech Model 5099EN24

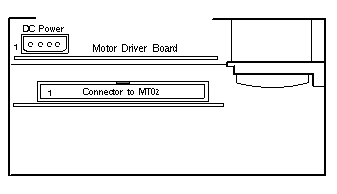

Rear View of Archive Model 5945C

Power

1.0 Amps @ +5Vdc
1.9 Amps @ +12Vdc
27.8 Watts

Note

This tape drive is used with the Emulex MT02.

60MB 1/4" Tape Drive
with Emulex MT02 Tape Controller

Sun-4/370

Options RR128 / RR129 / RREXP / RREXP-P7

370-1247 370-1179
Archive 5945S
Full-Height
Black Bezel		 Archive 5945S
Full-Height
Lt Grey Bezel

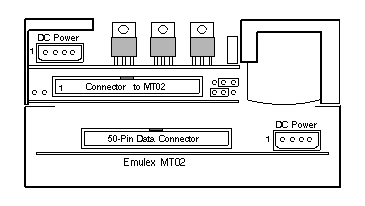

Rear View

Emulex MT02 Tape Controller Switch Settings

DIP
SWITCH		 SWITCH SETTING DESCRIPTION
SW1 1 & 2
3		 Off
On		 SCSI target 4
SCSI target 4
1 & 3
2		 On
Off		 SCSI target 5
SCSI target 5
4
5
6
7		 Off
On
Off
Off		 Not used
Archive tape drive
Archive tape drive
Drive type
8
8		 On
Off		 Parity check ON for 370-1179
Parity check OFF for 370-1247

Reference

60MB Streaming Tape Drive with SCSI Controller Configuration Procedures, 814-1019.
