150MB 1/4" Tape Drive

Sun-4/330/370/390/470/490
SS630MP / SS670MP / SS690MP / SC2000

Options 539 / 565 / 660

370-1205 370-1206 370-1218 370-1246
Archive 2150S
Half-Height
Black Bezel
Archive 2150S
Full-Height
Black Bezel
Archive 2150S
Half-Height
Custom Bezel
Archive 2150S
Full-Height
Lt Grey Bezel

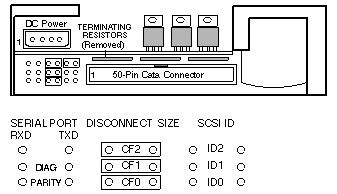

Rear View

Flex Cable

In the Desktop Tape Pack, remove the SCSI ID jumpers, orient the Flex Cable as shown, and plug it into the SCSI ID jumper block.

Address Select Switch Cable

In the External Storage Module, orient the Address Select Switch Cable as shown, and plug it into the SCSI ID jumper block.

Power

0.7 Amps @ +5Vdc
1.5 Amps @ +12Vdc
21.5 Watts

Jumper Settings

JUMPER SETTING DESCRIPTION USAGE
RXD/TXD Out Serial Port Not used
DIAG
Parity
Out
Out*
Normal/Diag
Parity check
Not used
Not used
CF2,CF1,CF 0 In Disconnect Transfer Size Size = 32K
JUMPER TARGET 2 TARGET 3 TARGET 4 TARGET 5
ID2 Out Out In In
ID1 In In Out Out
ID0 Out In Out In
1st SCSI st3 st2 st0 st1
2nd SCSI st7 st6 st2, st4 st3, st5

* IN for 370-1246

Note

The Cartridge Tape part number is 370-1203-01.

Reference

150MB 1/4-Inch Cartridge Tape Drive Configuration Manual for the 56-Inch Data Center Cabinet, 813-2076.
