Sun 4400
Sun-4/470/490
| 501-1333 |
501-1721 |
| 32MB ECC |
128MB ECC |
Power
| 32MB |
15.6 Amps @ +5Vdc
78.0 Watts |
| 128MB |
13.7 Amps @ +5Vdc
68.5 Watts |

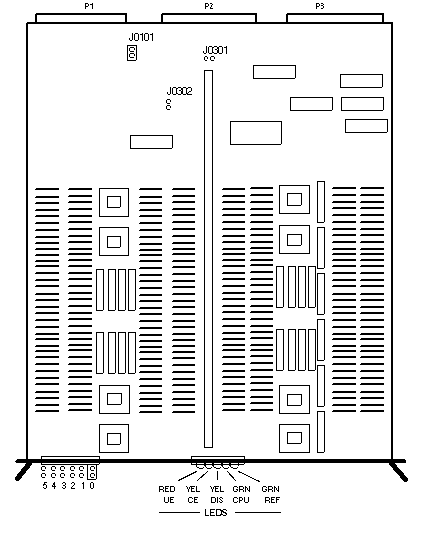

LED Status and Jumper Settings

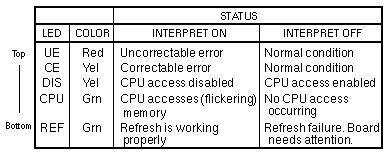

Memory Board LEDs
Jumper Settings
| JUMPER |
PINS |
SETTING |
DESCRIPTION |
| J0101 |
1-2 |
In |
Enable SET.RDY |
J0301
J0302 |
1-2
1-2 |
In
Out |
Set for 32MB board
Set for 32MB board |
J0301
J0302 |
1-2
1-2 |
Out
In |
Set for 128MB board
Set for 128MB board |
J0310
J0311
J0312
J0313
J0314
J0315 |
1-2
1-2
1-2
1-2
1-2
1-2 |
In
In
In
In
In
In |
1st memory board
2nd memory board
3rd memory board
4th memory board
5th memory board
6th memory board |
Notes
- The Sun 4400 CPU requires EPROM 3.0 or greater to support the 128MB memory board.
- SunOS 4.0.3 supports up to 256MB of memory.
- SunOS 4.1 PSR A requires 4.1 PSR A Sun-4 PMEG Patch to enable over 256MB of
memory.
- A Correctable Error on the sixth 128MB board turns on the CE LED and turns off error
logging. Reset power to clear this condition.
Reference
- 32- and 128-Mbyte Memory Board Installation and Configuration
Procedures, 800-3518.
Last updated: December 2, 1996
|
|
|
