SunDials

Option 190



Wiring Diagram

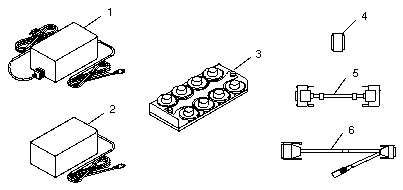

PART # DESCRIPTION
- 595-1737 115V SunDials Assembly
- 595-1773 230V SunDials Assembly
1 300-1053 115V Power Supply
2 300-1054 230V Power Supply
3 370-1223 Dialbox and Bale
4 540-1935 RFI Filter, DB-25
5 530-1610 DB-9M to DB-9F Cable, 600 mm
6 530-1525 DB-9 to DB-15 to DIN-5 Cable, 2.0M
NS 180-1125 230V AC Power Cord (obsolete)
NS 260-3257 Overlay Template



Last updated: December 2, 1996
