750 754 756
2 1.3GB Disks
1 Tray
4 1.3GB Disks
8 mm Tape
2 1.3GB Disks
Expansion Tray

SCSI Expansion Pedestal

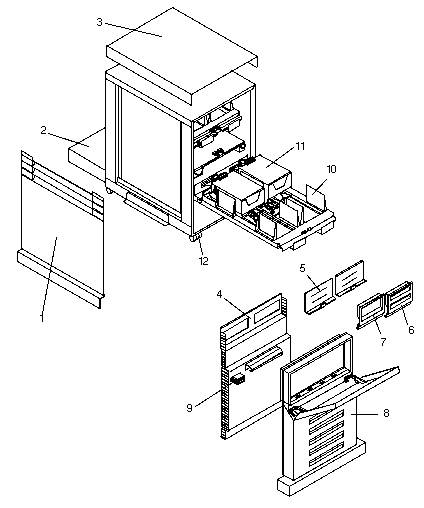

CODE PART # DESCRIPTION
1 540-1846 Side Cover
2 300-1091 800 Watt Power Supply
2 300-1106 800 Watt Power Supply
3 340-1898 Top Cover
4 340-2534 Front EMI Cover, without Switch Assembly
5 340-2292 Blank EMI Cover Filler Panel
6 330-1192 Blank Bezel Insert
7 330-1210 Front Bezel Half-Height Insert
7 330-1284 Front Bezel Full-Height Insert
8
NS
NS
540-1939
240-0558
240-0557
Front Bezel Assembly
Miniball Receptacle
Miniball Fastener
9
NS
NS
NS
NS
540-1765
501-1531
540-2136
330-1373
340-2491
LED/Switch Assembly
LED/Switch PCB
Remote Switch Assembly
Switch
Switch Bracket
10 340-2444 Peripheral Mounting Bracket
11 370-1377 1.3GB Disk Drive, Seagate 976002-012, PA4E1
11 370-1377 1.3GB Expansion Disk Drive, Option 572
12 340-2129 Caster
NS 150-1785 External Active Terminator, 50-Pin SCSI-2
NS 340-2535 Rear EMI Cover
NS 340-2543 Rear EMI Cover Filler Panel
NS 370-1297 2.3GB 8 mm Tape Drive, Full-Height, Option 802
NS 370-1347 SunCD CD-ROM, Half-Height, Option 559
NS 530-1619 System Grounding Cable, 2.0M
NS 530-1675 Peripheral Tray DC Harness
NS 530-1676 Internal SCSI Cable, 1670 mm
NS 530-1793 External Cable, 50-Pin SCSI-2, 80 cm, Ferrites
NS 530-1811 DC Harness, Power Supply to Right Side
NS 530-1824 LED/Switch DC Harness, Power Supply to Switch
NS 530-1836 External Cable, 50-Pin SCSI-2, 2.0M, Ferrites
NS 530-1841 DC Harness, Power Supply to Fans and Left Side
NS 530-1842 CD-ROM Grounding Cable
NS 530-1852 External Cable, 50-Pin SCSI-2, 4.0M, Ferrites
NS 540-1749 Rear Bumper
NS 540-1847 Rear Bezel
NS 540-2157 Three Fan Assembly, 45 CFM each

800-6402 Sun SCSI Expansion Pedestal Service Manual

800-7286 Sun SCSI Expansion Pedestal Service Manual
