741A 742A 743A 745A 744A
1.2GB Disk 2 1.2GB Disks 3 1.2GB Disks 4 1.2GB Disks 1.2 GB Disk
Standalone

Sun Expansion Pedestal

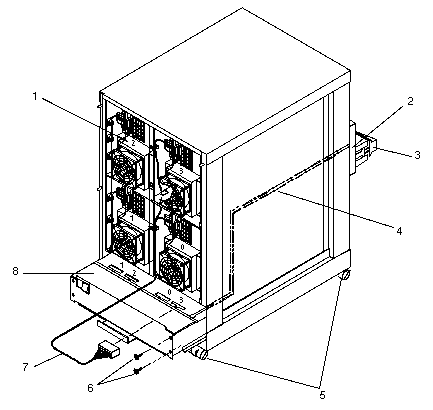

CODE PART # DESCRIPTION
NS
NS
340-2188
340-2208
Rear Panel without Cables
Filler Panel
1
NS
NS
NS
NS
NS
540-1926
370-1314
340-2300
180-1486
240-1207
250-1070
IPI8-1000 3MB/Sec Disk Drive FRU Assembly
1.2GB Disk Drive, Seagate 97209-12G, PA8R2 1
Disk Mounting Cradle
Front Ground Strap
#10-32 x 1/2" Drive Mounting Screw
Rear Ground Strap
NS 340-1898 Top Cover
NS 330-1192 Disk Bezel Insert
NS 540-1749 Rear Bumper Assembly
NS 540-1846 Side Panel Assembly
NS 540-1847 Rear Bezel Assembly
NS 540-1939 Front Panel and Bumper Assembly
NS 530-1487 IPI Drive I/O Cable, 8.0M (obsolete)
NS 530-1488 IPI Drive I/O Cable, 1.0M
NS 530-1518 IPI Drive I/O Cable, 2.0M (obsolete)
NS 530-1536 IPI Drive I/O Cable, 450 mm
NS 530-1788 IPI Drive I/O Cable, 2.0M
NS 530-1789 IPI Drive I/O Cable, 8.0M
NS 370-1220 IPI Drive Terminator
2
NS
NS
540-1765
340-2050
501-1531
LED/Switch Assembly
Switch Panel
LED/Switch PCB
3
NS
NS
NS
540-1748
330-1212
330-1213
340-1936
Remote Switch Assembly
Switch
Push Block
Switch Housing
4 530-1495 LED/Switch DC Harness
5 340-2129 Caster
6 240-1372 M4 0.7 x 10 mm Screw
7 530-1544 DC Harness
8 300-1052 820W Power Supply (obsolete) 2
8 300-1075 840W Power Supply
NS 530-1619 System Grounding Cable, 2.0M
NS 340-2262 Cable Restraint Bracket
NS 230-0203 4" Tiestrap
NS 230-1188 6" Tiestrap, Snap-in
NS 800-3257 Sun Expansion Pedestal Field Service Manual
  1. Do NOT install Disk Drive 370-1187 in the Sun Expansion Pedestal
  2. Power Supply 300-1052-05 does not support the 1.2GB Disk Drive.
