706 707 709 710
1.2GB Disk 2.1.2GB Disks 4 1.2GB Disks 8 1.2GB Disks

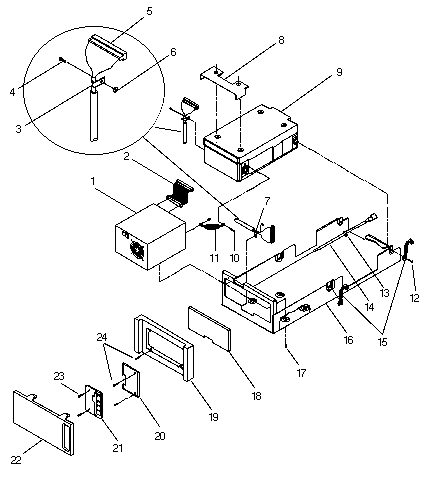

1.2GB IPI-2 Disk Subsystem

CODE PART # DESCRIPTION

540-1770 IPI Drive, Power Supply, and Tray Assembly
1 300-1041 205W Power Supply
2 370-1263 DC Harness
3 240-1603 Cable Clamp
4 240-1185 #6-32 x 1/4" Screw
5 370-1262 Operator Panel Harness
6 240-1035 Lock Washer, #6
7 240-1602 Cable Clamp
8 370-1350 Air Baffle
9 370-1187 1.2GB Disk, Seagate 97209-12G, PA8R2
10 240-1185 #6-32 x 1/4" Screw (use 7/64" Hex Screwdriver)
11 250-1013 Ground Strap
12 240-1186 #6-32 x 3/8" Screw
13 240-1595 Power Cord Clamp
14 180-1185 AC Power Cord, 572 mm
15 250-1023 Ground Strap
16 340-1854 Tray
17 240-1185 #6-32 x 1/4" Screw (use 7/64" Hex Screwdriver)
18 250-1016 Filter
19 330-1224 Operator Panel Mounting Bracket
20 330-1226 Operator Panel Shield
21 370-1221 Operator Panel
22 330-1225 Operator Panel Cover
23 240-1601 #6-32 x 1/4" Screw (use 2 mm Hex Screwdriver)
24 240-1596 #6-32 x 7/8" Screw (use 7/64" Hex Screwdriver)
NS 180-1183 AC Power Cord, 'Y' (230V)
NS 180-1184 AC Power Cord, 'Y' (240V)
NS 340-1853 Dual Drive Tray (obsolete)
NS 340-1855 Tray Slide, Right (obsolete)
NS 340-1856 Tray Slide, Left (obsolete)
NS 340-1891 Tray Spacer
NS 340-2296 Dual Drive Tray
NS 370-1220 IPI Drive Terminator
NS 530-1351 AC Power Cord (230V)
NS 530-1343 AC Power Cord (240V)
NS 530-1487 IPI Drive I/O Cable, 8.0M (obsolete)
NS 530-1488 IPI Drive I/O Cable, 1.0M
NS 530-1518 IPI Drive I/O Cable, 2.0M (obsolete)
NS 530-1536 IPI Drive I/O Cable, 450 mm
NS 530-1788 IPI Drive I/O Cable, 2.0M
NS 530-1789 IPI Drive I/O Cable, 8.0M
NS None #6-32 x 1/4" Screw (use T15 Torx Screwdriver)
NS 370-1330 Connector Assembly (use 7/64" Hex Screwdriver)


Last updated: December 2, 1996
