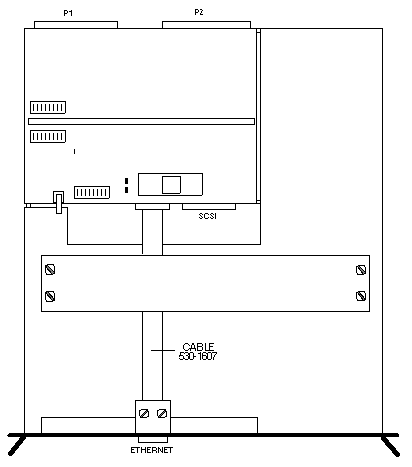

Sun-3/E Ethernet Assembly

Sun-4/390/470/490

Option 452
501-1584



Power:

4.1 Amps @ +5Vdc
20.5 Watts

Notes

  1. Board revision 501-8027-06 or 501-1584-01 is required for use in any SPARC CPU based system.
  2. When used with the Sun-4400 CPU, 501-1381, the board revision must be >=501-8027-07 or the assembly must be >=501-1584-02.

Switch and Jumper Settings

DIP SWITCH SWITCH SETTING DESCRIPTION
SW0601 1-7
1-7		 On
Off		 Not Supported
Enable Ethernet*
SW0201 1
2
3
4
5
6
7
8		 Off
Off/On
*
*
*
Off
On
On		 24/32-bit addressing
N/C
A18 address decode
A19 address decode
A20 address decode
A21 address decode
A22 address decode
A23 address decode
*DIP Switch SW0201 settings for ie2, ie3, and ie

SW0201 SWITCH 3 SWITCH 4 SWITCH 5 ADDRESS
1st Board On On Off 31ff02
2nd Board Off On Off 35ff02
3rd Board Off Off On 2dff02

DIP SWITCH SWITCH SETTING DESCRIPTION
SW0202 1 On A24 address decode
SW0202 2 On A25 address decode
SW0202 3 On A26 address decode
SW0202 4 On A27 address decode
SW0202 5 On A28 address decode
SW0202 6 On A29 address decode
SW0202 7 On A30 address decode
SW0202 8 On A31 address decode

JUMPER PINS SETTING DESCRIPTION
J0201 1-2 In Clock enable
J0601 1-2 In Level 1 Ethernet
J0601 1-2 Out Level 2 Ethernet
J0602 1-2 Out VCC to Pin-7 disabled

Reference

Sun SunNet Ethernet/VME Controller Configuration Procedures, 813-2082-10.
