Sun-2 Ethernet Controller

Sun-4/110/150/260/280
Sun-4/310/330/350/360/370/380/390

Option 450
501-1004



Power:

6.0 Amps @ +5Vdc
0.5 Amps @ +12Vdc
36.0 Watts

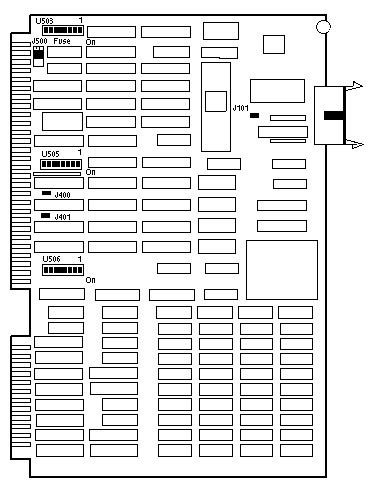

Jumper and Switch Settings

JUMPER PINS SETTING DESCRIPTION
J101 1-2
1-2		 In
Out		 Level 1 Ethernet
Level 2 Ethernet
J400 1-2 Out M.BIG Select
J401 1-2 Out M.EXP Select
J500 1-2
3-4
5-6
7-8
9-10
11-12
13-14
15-16		 Out
Out
Out
Hardwired
Out
Out
Out
Out		 Interrupt level 0
Interrupt level 1
Interrupt level 2
Interrupt level 3
Interrupt level 4
Interrupt level 5
Interrupt level 6
Interrupt level 7

Switch Settings for VMEbus Controller ie1

DIP SWITCH 1 2 3 4 5 6 7 8
U503
U505		 Off
Off		 Off
Off		 Off
On		 On
Off		 Off
Off		 Off
Off		 Off
Off		 On
Off
U506 Off On On Off Off On On Off

Note:

The Sun-2 Ethernet Controller is not supported in Solaris >=2.2.

Last updated: December 2, 1996
