Multiprotocol Communication Processor

Sun-4/110/150/260/280
Sun-4/310/330/350/360/370/380/390/470/490
SS600MP

501-1221



Power:

7.0 Amps @ +5Vdc
0.2 Amps @ -5Vdc
36.0 Watts

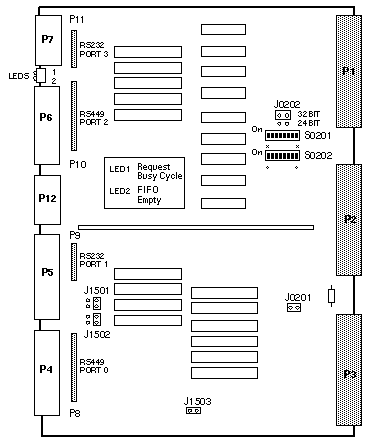

Jumper and Switch Settings

JUMPER PINS SETTING DESCRIPTION
J0201 1-2 In Test jumper for oscillator
J0202 32 Bit In VME address bus size
J0202 24 Bit Out
J1501 RS-232 Out Not used for MCP
J1501 RS-449 In Enables RS-449 Port 0
J1502 RS-232 Out Not used for MCP
J1502 RS-449 In Enables RS-449 Port 1
J1503 1-2 In Test jumper for oscillator


DIP SWITCH S0201
DIP SWITCH S0202
ADDRESS BIT A
1
6
A
1
7
A
1
8
A
1
9
A
2
0
A
2
1
A
2
2
A
2
3

A
2
4
A
2
5
A
2
6
A
2
7
A
2
8
A
2
9
A
3
0
A
3
1
SWITCH and SETTING 1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
mcp0 @ 0x01000000 1 1 1 1 1 1 1 1
0 1 1 1 1 1 1 1
mcp1 @ 0x01010000 0 1 1 1 1 1 1 1
0 1 1 1 1 1 1 1
mcp2 @ 0x01020000 1 0 1 1 1 1 1 1
0 1 1 1 1 1 1 1
mcp3 @ 0x01030000 0 0 1 1 1 1 1 1
0 1 1 1 1 1 1 1

0 = Off
1 = On

Notes

  1. The Sun-3/110 and Sun 3004 CPU must be 501-1134-06, 501-1163-09, 501-1164-09, or greater. All 501-1208 and 501-1209 revisions are usable.
  2. The MCP is not supported in Solaris >=2.2.
  3. An addressing conflict can occur between the MCP, ALM-1, and ALM-2. Refer to the VME Installation Notes in the Slot Assignment chapter.

Reference:

MCP Configuration Procedures, 813-2032.
