High-speed Serial Interface (HSI)

Sun-4/110/150/260/280/330/350/390/470/490

501-1338



Power:

5.3 Amps @ +5Vdc
0.3 Amps @ -5Vdc
28.1 Watts

Notes

  1. SCSI-3 Host Adapter must be >=501-1120-07, >=501-1170-07, >=501-1217-04, or >=501-1236-03.
  2. Sun-3/110 CPU must be >=501-1134-06.
  3. Sun-3/140/150/160/180 CPU must be >=501-1074-22, >=501-1094-22, >=501-1163-09, >=501-1164-09, or any revision of 501-1208.
  4. The minimum operating system is SunOS 4.0.
  5. The High-speed Serial Interface is not supported in Solaris >=2.2.

Reference

SunLink HSI Board Installation/Service Manual, 813-1046-10.

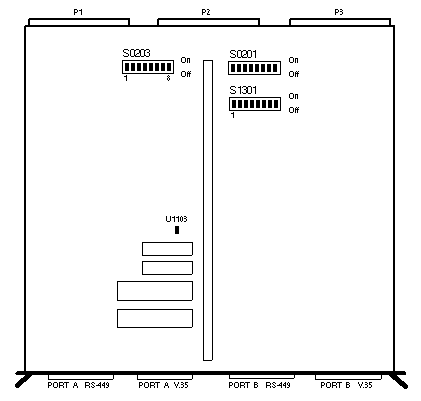

Switch and Jumper Settings

DIP
SWITCH
SWITCH SETTING DESCRIPTION
SW020* 1
2
3
4
5
6
7
8
Off
On
On
On
On
On
On
On
Base address select A24
Base address select A25
Base address select A26
Base address select A27
Base address select A28
Base address select A29
Base address select A30
Base address select A31
SW0203* 1
2
3
4
5
6
7
8
On
On
On
On
On
Off
On
On
Base address select A16
Base address select A17
Base address select A18
Base address select A19
Base address select A20
Base address select A21
Base address select A22
Base address select A23
SW1301 1
2
3
4
5
6
7
8
On
On
Off
On
On
On
On
On
Interrupt level 1
Interrupt level 2
Interrupt level 3
Interrupt level 4
Interrupt level 5
Interrupt level 6
Interrupt level 7
Not used
* The first HSI address is 0x01200000.
* The second HSI address is 0x01400000.
** SW-6 is ON and SW-7 is OFF for a second HSI.

Jumper U1103
PINS SETTING DESCRIPTION
1-2 In Clock enable



Last updated: December 2, 1996
