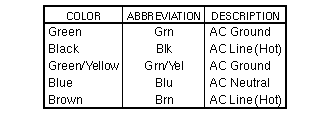

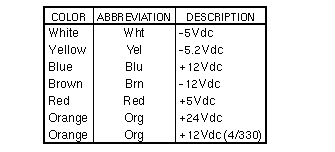

Volume II - PowerWire HarnessesWire Harness Color CodesThe most common wire insulation colors used on Sun AC and DC wire harnesses are shown in the charts below. Not all products conform to these color codes. AC Wire Harnesses Adapter Harness 811-9015-01 connects non-TUV approved fastons on AC and DC wire harnesses to TUV approved fastons that were cut into production in February 1987. One end of the adapter harness has TUV approved female fastons. The other end of the adapter harness has non-TUV male fastons. A TUV female faston attaches to a non-TUV male faston. A non-TUV female faston does not attach to a TUV male faston. Use adapter harness 811-9015-01. | ||||||||||||
|
||||||||||||
