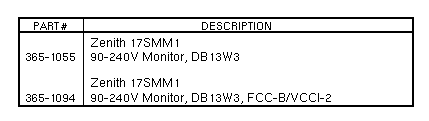

Volume II: Parts Breakdown - Monitor

17-inch Greyscale CRT

Image Size: 295 mm Horizontal / 230 mm Vertical / 374 mm Diagonal

     Pixel      Horizontal    Vertical
  Resolution    Frequency     Frequency
  ----------    ----------    ---------
  1152 x 900     61.8KHz        66Hz

17-inch Greyscale CRT

Image Size: 295 mm Horizontal / 230 mm Vertical / 374 mm Diagonal

     Pixel      Horizontal    Vertical
  Resolution    Frequency     Frequency
  ----------    ----------    ---------
  1152 x 900     71.7KHz        76Hz
  1024 x 780     71.7KHz        76Hz
   914 x 690     70.8KHz        84Hz
  1024 x 800     70.8KHz        84Hz
