SPARCclassic X (Sun-4/10)

501-2262 501-2079 501-2313 501-2913
0MB FRU 4MB 8MB 0MB FRU
w OBP 2.20

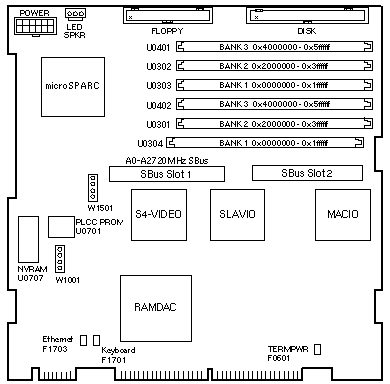

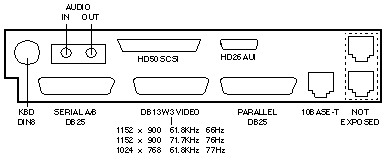

SPARCclassic X I/O Board
501-2269

SIMM Installation

TOTAL
MEMORY
BANK 1
U0304
BANK 2
U0301
BANK 3
U0402
BANK 1
U0303
BANK 2
U0302
BANK 3
U0401
8MB 1MB*
2MB
4MB***
1MB
2MB
2MB** 1MB
2MB
4MB
1MB
2MB
2MB
12MB 1MB
2MB
2MB
1MB
4MB
2MB
4MB

2MB
1MB
2MB
2MB
1MB
4MB
2MB
4MB

2MB
16MB 4MB
2MB
4MB
4MB

4MB
4MB
2MB
4MB
4MB

4MB
20MB 2MB 2MB 4MB 2MB 2MB 4MB
24MB 4MB 4MB 4MB 4MB 4MB 4MB
32MB 16MB

16MB

36MB 1MB
2MB
1MB
16MB
16MB 1MB
2MB
1MB
16MB
16MB
40MB 2MB
4MB
2MB
16MB
16MB 2MB
4MB
2MB
16MB
16MB
44MB 2MB 4MB 16MB 2MB 4MB 16MB
48MB 4MB 4MB 16MB 4MB 4MB 16MB
64MB 16MB 16MB
16MB 16MB
72MB 4MB 16MB 16MB 4MB 16MB 16MB
96MB 16MB 16MB 16MB 16MB 16MB 16MB
* 1MB SIMM 501-2289
** 2MB SIMM 501-2433
*** 4MB SIMM 501-1991

Notes

  1. The minimum operating system is Solaris 1.1c (SunOS 4.1.3c)
  2. The 501-2262-09 has SPARCclassic X Boot PROM support.
  3. The PLCC Boot PROM is not a FRU and is not field replaceable.
  4. The 501-2913 was released by SunService to support BOOTP.
  5. Use the MFAR value to determine the address of a failing SIMM.
    If the MFAR ends in 0, 1, 2, 3, 8, 9, A, or B, the failing SIMM is in U0304, U0301, or U0402.
    If the MFAR ends in 4, 5, 6, 7, C, D, E, or F, the failing SIMM is in U0303, U0302, or U0401.

Reference

Installing SPARCclassic X SIMMs, 801-2211.
