SPARCstation Voyager

501-2405 501-2493 501-2581 501-2685
60MHz 16MB 60MHz 16MB 60MHz 16MB 60MHz 16MB

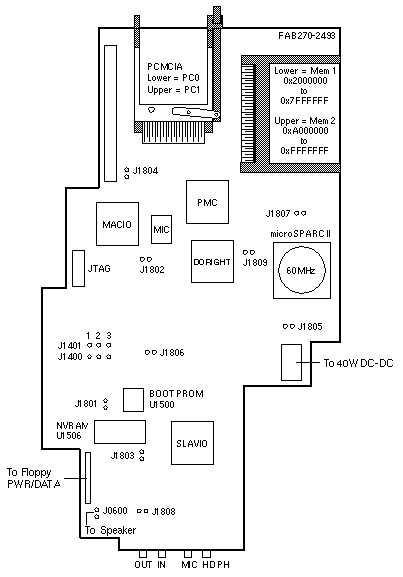

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J0600 1-2 Out Audio A/B (not a selection)
J1400
J1401
J1400
J1401		 1-2
1-2
2-3
2-3		 In
In
In*
In		 100 Ohm ISDN termination enabled
100 Ohm ISDN termination enabled
100 Ohm ISDN termination disabled
100 Ohm ISDN termination disabled
J1801 1-2 N/A Ground test Point
J1802 1-2 N/A Ground test point
J1803 1-2 N/A Ground test point
J1804 1-2 N/A Ground test point
J1805 1-2 N/A Ground test point
J1806 1-2 N/A Ground test point
J1807 1-2 N/A Ground test point
J1808 1-2 N/A Ground test point
J1809 1-2 Out Ground POK

Notes

  1. The minimum operating system is Solaris 2.3 Edition II.
  2. Solaris 2.3 Edition II requires the Solaris 2.3 Edition II PSR.
  3. Install expansion memory in either memory slot.
  4. Serial Port A is configured for RS-232.
  5. The early production chassis is not compatible with CPU 501-2581 or 501-2685. Remove the metal standoff on the chassis located next to the CPU memory expansion slots.

Reference

SPARCstation Voyager Service Manual, 801-3872.
