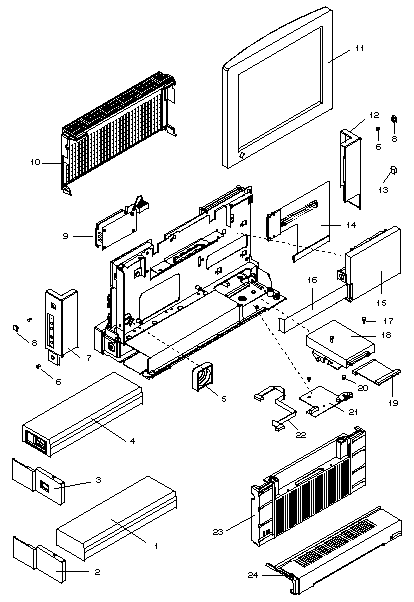

SPARCstation Voyager

Logic Enclosure

CODE PART # DESCRIPTION
1
-
-
-
2
2
595-3146
300-1213-01
300-1213-02
530-2063
540-2493-xx
540-2493-04
Battery Assembly
40 Watt Battery
40 Watt Battery with Pull Ring
Power Cord, Battery Charging Mode
Battery Cover for 300-1213-01
Battery Cover for >=300-1213-02
3 540-2494-xx Power Supply Cover for <=300-1212-02
3 540-2494-04 Power Supply Cover for >=300-1212-03
4 300-1212-xx 60 Watt Power Supply
4 300-1212-03 60 Watt Power Supply with Pull Ring
5 540-2454 Speaker Assembly
6 240-2118 M3 x 5 mm Screw
7 330-1672 End Cap, Left
8 330-1743 End Cap Plug
9 300-1234 DC-DC Converter
10 330-1597 Rear Cover
11 540-2452 12" Color LCD
11 540-2453 14" Mono LCD
12 330-1669 End Cap, Right
13 540-2596 Lockbox Assembly
14 530-2049 Frame Buffer to CPU Flex Cable
15
-
-
-
540-2445
240-2104
330-1668
370-1542
Floppy Drive FRU Assembly
M2 x 4 mm Screw
Mounting Bracket
Floppy Drive
16 530-2061 Floppy Power and Data Cable
17 240-1759 M3 x 8 mm Screw
18
-
-
-
-
-
-
540-2446
240-2161
240-2164
370-1670
540-2546
330-1779
340-2961
340MB Disk Drive FRU Assembly
Washer
M3 Shoulder Screw
340MB Disk Drive
Drive Mounting Bracket Assembly
Grommet
Mounting Bracket
18
-
-
-
-
-
-
540-2695
240-2161
240-2164
370-1982
540-2546
330-1779
340-2961
810MB Disk Drive FRU Assembly
Washer
M3 Shoulder Screw
810MB Disk Drive
Drive Mounting Bracket Assembly
Grommet
Mounting Bracket
19 530-2062 Disk Drive SCSI Cable, 87 mm
20 240-2117 M3 x 5 mm Screw
21 501-2491 Infrared Module
22 530-2071 Infrared Module Cable
22 330-1594 Front Cover
23 330-1714 Rear Bottom Cover
NS 240-1571 #4-40 x 0.15" Jackscrew
NS 240-2131 M3 x 4mm Screw
NS 240-2164 M3 x 4 mm Screw
NS 240-2173 M2 x 4mm Screw
NS 330-1699 LCD Connector Cover (configurations without LCD)
NS 330-1777 Power On/Off Button
NS 530-2069 DC Wire Harness
NS 501-2492 I/O Board (obsolete)
NS 501-2582 I/O Board (obsolete)
NS 501-2683 I/O Board
NS 540-2545 Front Bottom Cover
NS 530-2073 Power Cord, UK, Type C7 - BS1363A
NS 530-2074 Power Cord, Europe, Type C7 - CEE 7/7
NS 530-2075 Power Cord, Australia, Type C7 - SAA/2
NS 530-2076 Power Cord, USA, Type C7 -NEMA 1-15
NS 530-2022 Power Cord, Japan, Type C7 - JIS-C 8303
