SS600MP Memory Board
| SS670MP |
SS690MP |
| 501-1767 |
501-1901 |
| 64MB ECC |
0MB ECC |
Power:
- 0MB 17.1 Amps @ +5Vdc
- 85.5 Watts
501-1767

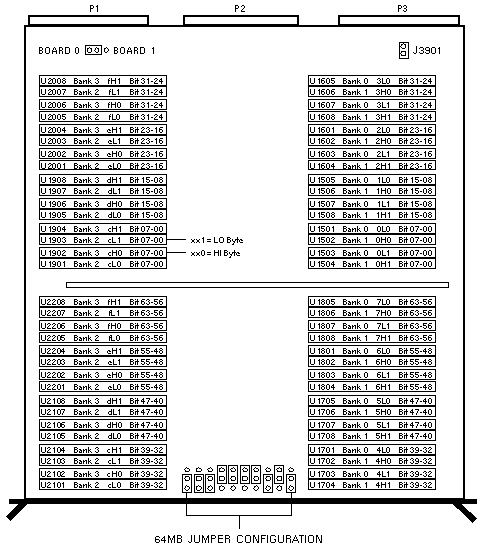

64MB Factory Jumper Settings
| JUMPER SILKSCREEN |
PINS |
SETTING |
DESCRIPTION |
| BANK 2, 3 SIMMS |
SGL |
In |
Select single sided SIMMs |
| BANK 2 INSTALLED |
OUT |
In |
SIMMs are not installed in Bank 2 |
| BANK 3 INSTALLED |
OUT |
In |
SIMMs are not installed in Bank 3 |
| BANK 3 |
80ns |
In |
80ns SIMMs |
| BANK 2 |
80ns |
In |
80ns SIMMs |
| BANK 0 |
80ns |
In |
80ns SIMMs |
| BANK 1 |
80ns |
In |
80ns SIMMs |
| BANK 1 INSTALLED |
OUT |
In |
SIMMs are not installed in Bank 1 |
| BANK 0 INSTALLED |
IN |
In |
SIMMs are installed in Bank 0 |
| BANK 0, 1 SIMMS |
SGL |
In |
Select single sided SIMMs |
SS600MP SIMMs
| SIZE |
SPEED |
SIMM P/N |
SS600
SYSTEM BOARD |
SS600
EXPANSION MEMORY |
| 1MB |
100ns |
501-1466 |
Supported |
Not supported |
| 1MB |
100ns |
501-1565 |
Supported |
Not supported |
| 4MB |
80ns |
501-1682 |
Supported |
Not supported |
| 4MB |
80ns |
501-1739 |
Supported |
Supported |
| 4MB |
80ns |
501-2460 |
Supported |
Supported |
| 16MB |
80ns |
501-2060 |
Supported |
Supported |
Notes
- The minimum operating system is SunOS 4.1.2.
- The final software release is Solaris 2.5.1.
- Use 4MB SIMM 501-1739-01 or 501-2460-01.
- Use 16MB SIMM 501-2060-01.
- The minimum memory configuration is 16 SIMMs in Bank 0.
Reference
600MP System Board and Expansion Memory Installation and
Service Manual, 800-5318.
|
