Seagate 97209-12G (1.2GB)
Equipment Number PA8R2
8" 3600 RPM IPI-2 3MB/Sec
Options 706 / 707 / 709 / 710 / 741A / 742A / 743A / 744A / 745A

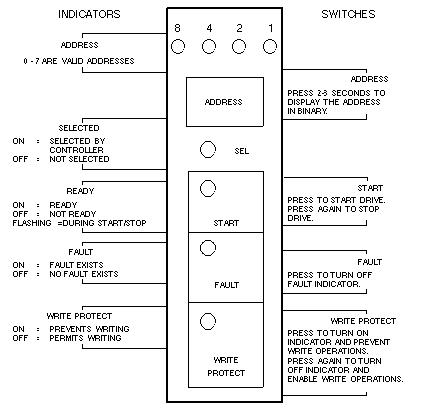

Operator Panel
370-1221
Note
- Each drive power on sequence is delayed for a time equal to five seconds
times its address. For example, if the address is 3, the drive starts
after a 15-second delay.
1.2GB Disk Enclosure
| 370-1187 |
370-1314 |
540-1770 |
540-1926 |
Rackmount Disk
w/o Power Supply
w/o Tray |
Pedestal Disk
w/o Bracket |
Rackmount Disk
w Power Supply
w Tray |
Pedestal Disk
w Bracket |
Control Board Dip Switch Settings
Dip Switch 1, Switches 1,2,3,4
| DRIVE |
SWITCH 4 |
SWITCH 3 |
SWITCH 2 |
SWITCH 1 |
| 0 |
Closed |
Closed |
Closed |
Closed |
| 1 |
Closed |
Closed |
Closed |
Open |
| 2 |
Closed |
Closed |
Open |
Closed |
| 3 |
Closed |
Closed |
Open |
Open |
| 4 |
Closed |
Open |
Closed |
Closed |
| 5 |
Closed |
Open |
Closed |
Open |
| 6 |
Closed |
Open |
Open |
Closed |
| 7 |
Closed |
Open |
Open |
Open |
|
|
Dip Switch 1, Switches 5 and 6
| SWITCH |
DESCRIPTION |
| 5 |
Not used |
| 6 |
Open = Write protected
Closed = Write enabled |
|

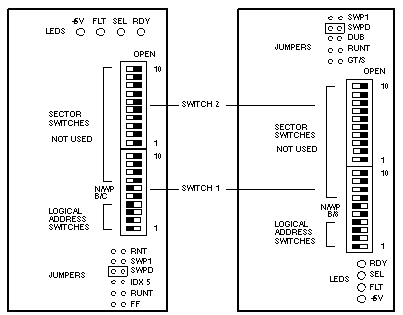

Control Board Types

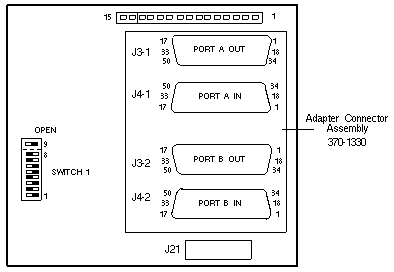

I/O Board Rear View
|
Power Connector
| 15 |
14 |
13 |
12 |
11 |
10 |
9 |
8 |
7 |
6 |
5 |
4 |
3 |
2 |
1 |
+24
RTN |
+24 |
+24 |
+24 |
+24
RTN |
+24
RTN |
N/C |
PWR
OK |
-12 |
-5 |
-5 |
GND |
GND |
+5 |
+5 |
|
|
Dip Switch 1 Settings
| SWITCH |
SETTING |
DESCRIPTION |
1
2
3
4 |
Open
Closed
Open
Closed |
Drive starts when DC Power is applied
Disable Port B
Enable Port A
Disable internal diagnostics |
5
6
7
8 |
Open
Closed
Open
Closed |
1D 3
1D 2
1D 1
1D 0 |
ID Microcode. Do NOT Change
"
"
" |
| 9 |
Open |
Slave/Master spindle sync-slave |
|
Notes
- Use terminator 370-1220-01 on the Port A/B Out connector.
- Disable an unused port with the Port Enable/Disable switch.
- Do NOT install a terminator on an unused port.
- Switch 9 is on I/O board LYBX. It is not on I/O board BXDX.
- Do NOT install Disk Drive 370-1187 in the Sun Expansion Pedestal if
there are cooling vents on the top cover.
- Power Supply 300-1052-02 does not support 1.2GB Disk Drives.
- Power Supply 300-1052-03 supports two 1.2GB Disk Drives. Power
must be distributed between the two 410 Watt modules.
- Power Supply 300-1052-04 supports four 1.2GB Disk Drives.
- Power Supply 300-1052-05 does not support 1.2GB Disk Drives.
- Use Power Supply 300-1075 in the Sun Expansion Pedestal.
References
- IPI8-1000/2HP Disk Drive Configuration and Installation Procedures
or the Sun Expansion Pedestal, 813-5377.
-
IPI8-1000 and IPI8-1000/2HP Disk Drive Configuration and
Installation Procedures for the Sun 56-inch Cabinets, 813-1109.
|
