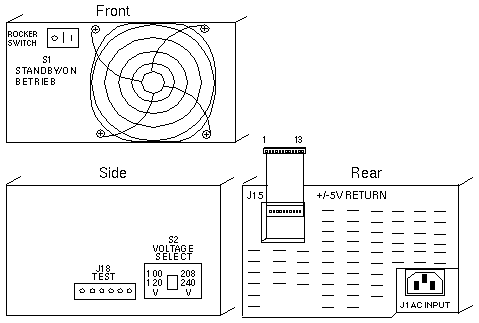

Seagate 45070622
205 Watt Power Supply

Seagate 97209-12G Disk Drive
Options 706 / 707 / 709 / 710
300-1041

J15
1 2 3 4 5 6 7 8 9 10 11 12 13
+5V +5V GND GND -5V -5V -12V +PWR
OK		 N/C +24V
RTN		 +24V
RTN		 +24V +24V

DC Output
+5V -5.1V -12V +24V
7.0A 4.25A 0.35A 6.0A

Fuse

Soldered at F 100, 8 Amps @ 250 Volts

Notes

Supports one Seagate 97209-12G 3MB/Sec IPI Disk Drive.
Does NOT Support the Seagate 97229-11G 6MB/Sec IPI Disk Drive.
