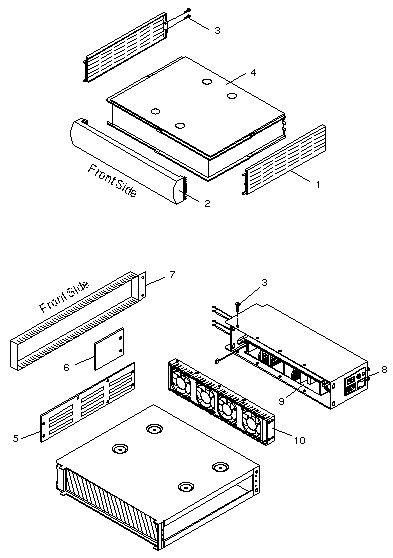

Freedom Series 1000
Model 1100
| CODE |
SUN PART # |
VENDOR PART # |
DESCRIPTION |
| 1 |
330-1067 |
None |
End Panel, 42 cm X 11 cm |
| 2 |
330-1069 |
None |
Front Bezel |
| 3 |
240-1372 |
None |
M4 0.7 x 10 mm Screw |
| 4 |
330-1071 |
None |
Side Panel, 42 cm X 59 cm |
| 5 |
501-1127 |
217187-100 |
3-Slot Backplane, Pressfit |
| 6 |
330-1144 |
None |
Backplane Shield |
| 7 |
340-1461 |
None |
Backplane EMI Cover |
| 8 |
370-1178 |
None |
AC Switch, Fuse, and Filter Assembly |
| 9 |
370-1827 |
415110-001 |
Power Supply |
| 10 |
None |
420703-001 |
Fan Assembly |
| NS |
370-1823 |
217184-100 |
Performance Module |
| NS |
370-1824 |
217186-100 |
SBus Interface Card |
| NS |
370-1825 |
217185-102 |
Motherboard |
| NS |
370-1826 |
217192-101 |
Phase Lock Loop Clock |
| NS |
370-1830 |
414114-001 |
4MB Texture Memory |
| NS |
370-1831 |
414114-256 |
1MB Texture Memory |
| NS |
370-1840 |
401160-010 |
CPU Interface Cable |
| NS |
370-1841 |
517602-001 |
Video Adapter Cable |
| NS |
370-1842 |
517603-016 |
Video Cable |
| NS |
370-1849 |
217181-100 |
SBus Platinum Card |
| NS |
None |
414114-004 |
16MB Texture Memory |
| NS |
340-1545 |
420850-001 |
Air Filter |
|
855-2342 |
517906-960 |
Series 1000 Support Manual |
Notes
- There are two Performance Module Nodes on a Performance Module. Texture
Memory placement on the Performance Module determines which Performance Module
Node performs texture mapping.
- Do NOT mix texture memory sizes on individual Performance Modules.
- Series 1000 and Series 3000 configurations include two Texture Memory
Modules on the Performance Module in location 0. Memory expansion options
include two Texture Memory Modules.
- If Performance Modules within a system contain different sizes of texture
memory, the system uses the smallest texture memory size installed.
- The SBus Interface Card is not compatible with the 25MHz SS20 SBus.
- The PLL is part of the Motherboard. Troubleshooting and removal of the PLL
is not included in the Support Manuals.
|
