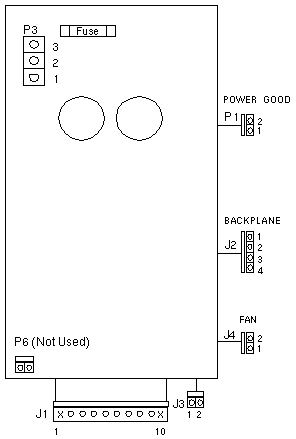

Summit CS0325-9001
325 Watt Power Supply

Freedom Series 1000
370-1827


 P3
1 2 3
Wht Grn Blk
NEUT GND GND

P1
1 2
Grey Wht/
Blk
PWR GND

J2
1 2 3 4
Red Red Blk Blk
+5V +5V GND GND

J4
1 2
Org Wht/
Blk
PWR GND

J3
1 2
Grey Wht/
Blk
PWR GND

J1
1 2 3 4 5 6 7 8 9 10
- Yel Yel Wht/
Yel		 Wht/
Yel		 Blu Wht/
Blk		 Brn Wht/
Blk		 -
N/A -5.2V -5.2V -5.2
RTN		 -5.2
RTN		 +12V GND -12V GND N/A

DC Output
+5V -5V +12V -12V
60A 8.0A 3.0A 1.5A

Fuse

7 Amps @ 250 Volts
(Not replaceable: soldered)

Note

Wait at least two minutes after power down or power outage before turning power ON to allow the unit to reset.
