Summit CS0325-9001
325 Watt Power Supply

GT Graphics Tower
300-1093

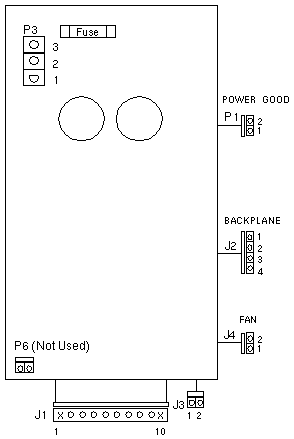

P3 1 2 3 Wht Grn Blk NEUT GND GND P1 1 2 Grey Wht/ Blk PWR GND J2 1 2 3 4 Red Red Blk Blk +5V +5V GND GND J4 1 2 Org Wht/ Blk PWR GND J3 1 2 Grey Wht/ Blk PWR GND

J1

1	2	3	4	5	6	7	8	9	10
-	Yel	Yel	Wht/ Yel	Wht/ Yel	Blu	Wht/ Blk	Brn	Wht/ Blk	-
N/A	-5.2V	-5.2V	-5.2 RTN	-5.2 RTN	+12V	GND	-12V	GND	N/A

DC Output

+5V	-5V	+12V	-12V
60A	8.0A	3.0A	1.5A

Fuse

7 Amps @ 250 Volts

(Not replaceable: soldered)

Note

Wait at least two minutes after power down or power outage before turning power ON to allow the unit to reset.
