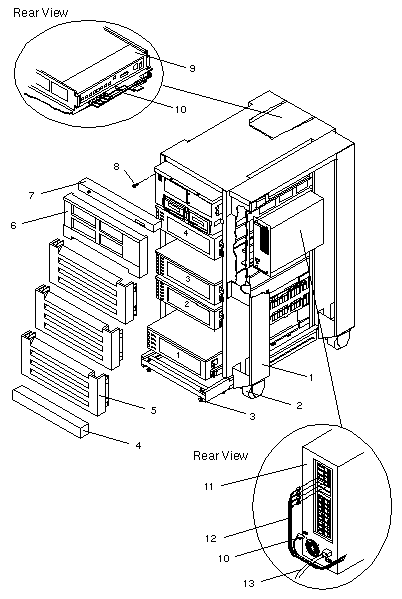

SPARCcluster 1
Logic Enclosure
| CODE |
PART # |
DESCRIPTION |
| 1 |
599-1986 |
240V Rack Assembly |
1
-
- |
599-1994
540-2279
340-2941 |
230V Rack Assembly
 Rack Sub Assembly
Rack Frame |
| 2 |
240-1717 |
Caster |
| 3 |
230-1181 |
Leveler Foot |
| 4 |
340-2047 |
Kick Panel |
| 5 |
540-1857 |
Front Vented Panel Assembly |
| 6 |
540-2252 |
Front Panel with 4 Tape Drive Cutouts |
| 7 |
540-1859 |
Cap Panel Assembly |
| 8 |
240-1372 |
M4 0.7 x 10 mm Screw |
| 9 |
370-1434 |
Xylogics Micro Annex Terminal Concentrator |
| 10 |
530-2028 |
Host to Annex Terminal Concentrator Cable (obs) |
| 10 |
530-2124 |
Host to Annex Terminal Concentrator Cable |
| 11 |
370-1433 |
Ethernet Switch with 6 Expansion Cards (obsolete) |
| 11 |
370-1769 |
Kalpana Ethernet Switch with 6 Expansion Cards |
| 11 |
370-1697 |
Ethernet Switch with 12 Expansion Cards (obsolete) |
11
-
-
-
-
-
- |
370-1770
370-1609
370-1610
370-1611
370-1771
370-1614
370-1772 |
Kalpana Ethernet Switch with 12 Expansion Cards
Power Supply
Motherboard
Network Expansion Card (obsolete)
Network Expansion Card
Chassis, Fans, Power Supply, and Harness (obs)
Chassis, Fans, Power Supply, and Harness |
| 12 |
530-2027 |
RJ45 Cable, Host to Kalpana Ethernet Switch |
| 13 |
530-1351 |
AC Power Cord, 230V, SCSI Tray and Kalpana |
| 13 |
530-1343 |
AC Power Cord, 240V, SCSI Tray and Kalpana |
| PART # |
DESCRIPTION |
| 180-1183 |
AC Power Cord, 230V, Host and Annex |
| 180-1184 |
AC Power Cord, 240V, Host and Annex |
| 230-1177 |
Snap In Clip |
| 230-1166 |
Cable Tie 5.5", Reusable |
| 230-0203 |
Cable Tie |
| 230-1062 |
Cable Route Grommet |
| 240-1630 |
#6-32 Ballstud |
| 240-1373 |
M4 0.7 Kepnut |
| 240-1207 |
#10-32 x 1/2" Sem Screw (obsolete) |
| 240-1953 |
#10-32 x 1/2" Sem Screw |
| 240-1372 |
M4 0.7 x 10 mm Screw |
| 240-1953 |
#10-32 x 1/2" Screw |
| 240-1655 |
#10-32 x 3/4" Screw |
| 240-1632 |
3/8-16 x 3/4" Bolt (Caster) |
| 240-1634 |
3/8" Washer (Caster) |
| 240-1868 |
1/4-28 x 1" Screw (Anti-Tilt Bar) |
| 250-1072 |
Leveler Foot Wrench |
| 260-3425 |
Sun Logo |
| 260-7316 |
SPARCcluster 1 Nameplate |
| 340-1840 |
Top Panel |
| 340-1845 |
Rear Panel |
| 340-1885 |
Side Panel Bracket, Upper |
| 340-1848 |
Side Panel |
| 340-1886 |
Side Panel Bracket, Lower |
| 340-1884 |
Anti-Tilt Panel |
| 340-2696 |
Chassis Mounting Bracket, Left |
| 340-2697 |
Mounting Bracket Clamp, Left |
| 340-2698 |
Chassis Mounting Bracket, Right |
| 340-2699 |
Mounting Bracket Clamp, Right |
| 340-2700 |
Ethernet Switch Mounting Bracket, Upper |
| 340-2701 |
Ethernet Switch Mounting Bracket, Lower |
| 340-2702 |
Terminal Concentrator Mounting Plate |
| 340-2703 |
Terminal Concentrator Mounting Clamp |
| 340-2704 |
Vented Filler Panel, 5.2 x 19" |
| 340-2904 |
Terminal Concentrator Hinged Bracket |
| 370-1155 |
AC Power Sequencer, 230V (obsolete) |
| 370-1156 |
AC Power Sequencer, 240V (obsolete) |
| 300-1263 |
AC Power Sequencer, 230V |
| 300-1264 |
AC Power Sequencer, 240V |
| 370-1437 |
Serial Port Adapter, DB-25 to RJ45 (obsolete) |
| 530-2103 |
Expansion Rack System Rack Serial Cable
Kalpana DB-9 to Annex Port 7, 6000 mm |
| 530-2105 |
Exp Rack Kalpana to Host Ethernet Card Cable
Kalpana P1/P2 to Host J1/J2, 4685 mm
Kalpana P3/P4 to Host J3/J4, 5160 mm |
| 530-2393 |
Keyswitch Cable |
| 540-2393 |
Keyswitch Assembly |
| 801-5015 |
SPARCcluster 1 System Service Manual |
Notes
- TPE Cable 530-2105-01 is made with Category 3 wire.
- TPE Cable 530-2105-02 is made with Category 5 wire.
- The SunFastEthernet Card requires Category 5 wire.

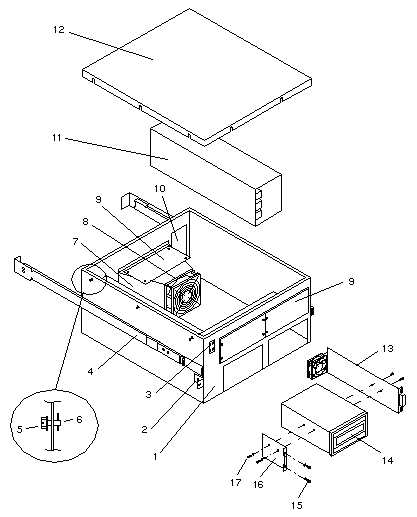

Tape Backup Tray
| CODE |
PART # |
DESCRIPTION |
| 1 |
340-2566 |
Chassis Enclosure |
| 2 |
340-2862 |
Tray Retaining Bracket |
| 3 |
150-1806 |
SCSI Address Select Switch |
| 4 |
370-1385 |
Slide Rail |
| 5 |
None |
Cross-Drilled Screw (use 240-1372-01) |
| 6 |
None |
Screw Retaining Clip |
| 7 |
340-2564 |
Fan Enclosure |
8
NS
NS |
370-1214
340-0265
240-1740 |
DC Fan, 105 CFM
Fan Fingerguard
#6-32 x 2" Screw |
| 9 |
340-2835 |
Full-Height Filler Panel |
| 9 |
340-2859 |
Half-Height-Height Filler Panel |
| 10 |
340-2899 |
8 Connector Panel |
| 11 |
300-1096 |
269 Watt Power Supply |
| 11 |
300-1312 |
269 Watt Nordic Power Supply |
| 12 |
340-2565 |
Top Cover |
13
13 |
540-2607
540-2606 |
Fan, Wire Harness, and Bracket Assy, 20GB 4 mm
Fan and Wire Harness Assembly |
| 14 |
370-1415 |
5.0GB 8 mm Tape Drive, Full-Height, Black Bezel |
| 14 |
370-1617 |
20GB 4 mm Tape Drive, Full-Height, Black Bezel |
| 14 |
370-1809 |
10GB 8 mm Tape Drive, Half-Height, Black Bezel |
| 14 |
370-1856 |
14GB 8 mm Tape Drive, Half-Height, Black Bezel |
| 15 |
240-1372 |
M4 0.7 x 10 mm Screw |
| 16 |
340-2148 |
Peripheral Mounting Bracket |
| 17 |
240-1141 |
#6-32 x 1/4" Screw for 5GB |
| 17 |
240-1530 |
M3 0.5 x 6 mm Screw for 10GB, 14GB, and 20GB |
| NS |
150-1785 |
External Active Terminator, 50-Pin SCSI-2 |
| NS |
530-2055 |
Ext SCSI Cable, 50-Pin SCSI-2 to 90° SCSI-2,
1.12M |
| NS |
530-2056 |
Ext SCSI Cable, 50-Pin SCSI-2 to 90° SCSI-2, 1.65M |
| NS |
530-2058 |
SCSI Address Select Switch Harness |
| NS |
530-2051 |
Internal SCSI Bus Cable, 980 mm |
| NS |
530-1892 |
DC Wire Harness |
| NS |
540-2252 |
56" Rack Front Panel with 4 Tape Drive Cutouts |
|
800-7008 |
5.0 Gbyte 8mm Tape Drive Tray Service Manual |
|
