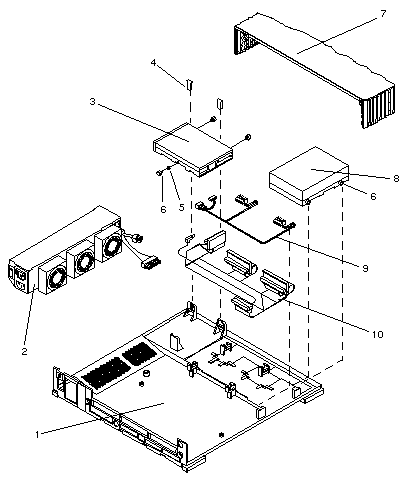

| CODE |
PART # |
DESCRIPTION |
| 1 |
540-2533 |
Base Assembly |
| 2 |
300-1081 |
140 Watt Power Supply 1 |
| 3 |
370-1420 |
3.5" Floppy Disk Drive, Triple Density |
| 4 |
330-1448 |
Floppy Drive Clip |
| 5 |
240-2075 |
3.5 mm Washer |
| 6 |
330-1390 |
#6-32 Drive Mounting Grommet |
| 7 |
540-2499 |
Top Cover Assembly |
| 8 |
370-1546 |
1.05GB Disk Drive, 1.5", Seagate ST11200N |
| 8 |
370-1710 |
1.05GB Disk Drive, 1.0", Seagate ST31200N |
8
-
-
-
- |
370-1684
240-1141
330-1390
330-1717
340-2939 |
535MB Disk Drive, Conner CP30540
#6-32 x 1/4" Screw (6 required)
#6-32 Drive Mounting Grommet (2 required)
Drive Mounting Grommet (2 required)
Drive Mounting Bracket |
| 9 |
530-1848 |
DC Power Harness |
| 10 |
530-1847 |
LED, SCSI, and Floppy Cable Assembly |
| NS |
540-2501 |
Speaker Assembly |
| NS |
260-3059 |
Sun Logo |
| NS |
260-5927 |
SPARCstation 10 Nameplate |
| NS |
260-5929 |
SPARCserver 10 Nameplate |
| NS |
540-1982 |
Lockbox Assembly |
|
801-6399 |
SPARCstation 10 Service Manual |
