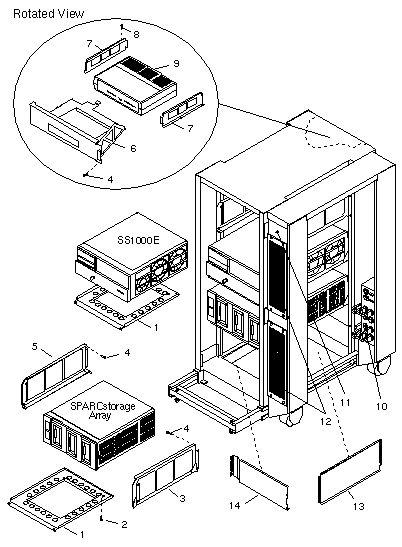

SPARCcluster 1000HA

56-inch Data Center Cabinet

CODE PART # DESCRIPTION
1 340-3239 Chassis Mounting Bracket
2 240-2248 M6 1.0 x 10 mm Screw
3 340-3235 Rack Mounting Bracket, Right
4 240-1953 #10-32 x 1/2" Screw
5 340-3237 Rack Mounting Bracket, Left
6 340-2702 Annex Mounting Tray
7 340-2703 Annex Mounting Bracket
8 240-1372 M4 0.7 x 10 mm Screw
9 370-1434 Xylogics Micro Annex Terminal Concentrator
10 370-1155 AC Power Sequencer, 230V (obsolete)
10 370-1156 AC Power Sequencer, 240V (obsolete)
10 300-1263 AC Power Sequencer, 230V
10 300-1264 AC Power Sequencer, 240V
11 540-2393 Keyswitch Assembly
12 370-1983 Fan Assembly
13 340-3300 Side Air Baffle, 221 x 528 mm
13 340-3302 Top Side Air Baffle, 148 x 528 mm
13 340-3318 Bottom Side Air Baffle, 198 x 522 mm
14 340-3299 Front Air Baffle, 221 x 466 mm
14 340-3301 Top Front Air Baffle, 162 x 466 mm



NS 260-3425 Sun Logo
NS 261-5705 SPARCcluster 1000 Nameplate
NS 340-2904 Annex Mounting Tray Hinge Bracket
NS 530-1343 IEC 320 - Reverse IEC 320 Power Cord, 240V
NS 530-1351 IEC-320-c13 to NEMA 6-15p Power Cord, 10A/250V, 2M
NS 530-2149 PDB Back-to-Back Ethernet Cable, 1.0M
NS 530-2150 PDB Back-to-Back Ethernet Cable, 5.0M
NS 530-2151 PDB RJ45-to-DB25 Serial Cable, 1.0M
NS 530-2152 PDB RJ45-to-DB25 Serial Cable, 5.0M
NS 530-2393 Keyswitch Cable

802-1720 SPARCcluster PDB System Service Manual
