Sun StorEdge[tm] S1 Array - Full Components List

Cables
Disk
Miscellaneous
Power
Rack Mount Kit
SCSI
System Board
Sun StorEdge S1 (FRU)

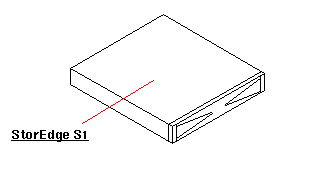

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Cables
X1132A	595-5660	530-2452 [F]	0.8M VHDCI/SCSI-3 Cable	n/a
X1134A	595-5661	530-2383 [F]	0.8M SCSI-3/SCSI-3 Cable	n/a
X1139A	595-5662	530-2384 [F]	2.0M SCSI-3/SCSI-3 Cable	n/a
X3830A	595-4694	530-2454 [F]	4.0M VHDCI/SCSI-3 Cable	n/a
X3831A	595-4695	530-2455 [F]	10.0M VHDCI/SCSI-3 Cable	n/a
X3832A	595-4693	530-2453 [F]	2.0M VHDCI/SCSI-3 Cable	n/a
X9940A	595-6233	530-2352 [F]	4.0M SCSI-3/SCSI-3 Cable	n/a

Option #	Top Level Part #	Assembly FRU	Manufacturing Part #	Description	Substitute Part #
Disk
X5250A	595-5960	540-4904 [F] Spud Bracket FRU w 1" Bkt 540-3024 w Plate 340-5928 or 340-7269	390-0069 [F]	Seagate ST336605LC (36.4GB - 10000 RPM)	n/a
			390-0065 *	Fujitsu MAN3367MC (36.4GB - 10000 RPM)	n/a
			390-0109 [F]	Seagate ST336607LC (36.4GB - 10000 RPM)	n/a
X5263A	595-6563	540-5455 [F] Spud Bracket FRU w 1" Bkt 540-3024 w Plate 340-5928 or Plate 340-7269	390-0106 [F]	Seagate ST373307LC (73.4GB - 10000 RPM)	n/a
X5248A [S]	595-5970	540-4910 [F] Spud Bracket FRU w 1" Bkt 540-3024 w Plate 340-5928 or 340-7269	390-0066 *	Fujitsu MAN3184MC (18.2GB - 10000 RPM)	n/a
X5248A [S]	595-5970		390-0085 [F]	Seagate ST318305LC (18.2GB - 10000 RPM)	n/a

* Fujitsu disk drives require Power Supplies 300-1488-03 or 300-1489-02.

Miscellaneous

Option # Top Level
Part # Manufacturing
Part # Description Substitute
Part #

n/a 560-2634
130-4361
230-1708
230-1711
230-1742 StorEdge S1 Ship Kit:
DC Connector (×4)
DC Connector Strain Relief (×4)
DC Connector Opening Lever
DC Power Supply Bushing (×2) n/a

X949A [S] 595-5302
130-4361
230-1708
230-1711 Wago DC Connector Set:
DC Connector (×10)
DC Connector Strain Relief (×10)
DC Connector Opening Lever n/a

Power - AC

Option # Top Level
Part # Manufacturing
Part # Description Substitute
Part #

n/a n/a 300-1488 [F] * Delta DPS-129AB AC Input Power Supply
Type A160 n/a

Power - DC

Option # Top Level
Part # Manufacturing
Part # Description Substitute
Part #

n/a n/a 300-1489 [F] * Delta DC Input Power Supply
Type D137 n/a

* Fujitsu MAN3184MC and MAN3367MC disk drives require 300-1488-03 or 300-1489-02.

Rack Mount Kit

Option # Top Level
Part # Manufacturing
Part # Description Substitute
Part #

X6919A 595-6231 n/a 19-inch Rack Mount Kit n/a

X6920A 595-6231 n/a 19-inch Rack Mount Kit
(Sun Fire 3800-6800 servers) n/a

X6967A 595-5323 n/a 24-inch Rack Mount Kit n/a

X6966A [S]
(Last order =
December 2001) 595-5322 n/a 23-inch Rack Mount Kit n/a

X6968A [S]
(Last order =
December 2001) 595-5324 n/a 600 mm Rack Mount Kit n/a

SCSI

Option # Top Level
Part # Manufacturing
Part # Description Substitute
Part #

X1018A 605-1568 501-2739 [F] Single-Ended Fast/Wide (SunSwift) n/a

X1032A 595-4258 501-5656 [F] Single-Ended Ultra/Wide SCSI (SunSwift PCI) 501-2741 [F]

X1063A 595-3258 370-1703 [F] Single-Ended Fast/Wide SCSI-2 Host Adapter (SWIS/S) n/a

X1232A 595-5306 501-5570 [F] Compact PCI (cPCI) Single Ended UltraSCSI + 10/100 Ethernet n/a

X2222A 595-5624 501-5727 [F] Dual FastEthernet + Dual SCSI PCI Adapter n/a

X6540A 595-4399 375-0005 [F] Dual Single-Ended Ultra/Wide SCSI (PCI) n/a

X6758A 595-5945 375-3057 [F] PCI Dual Ultra3 SCSI Host Adapter * n/a

* - The necessary drivers (SUNWqus & SUNWqusu) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see infodoc 47841 for details.

System Board

Option # Top Level
Part # Manufacturing
Part # Description Substitute
Part #

n/a n/a 501-5951 StorEdge S1 Motherboard n/a

Sun StorEdge S1 (FRU)

Option # Top Level
Part # Manufacturing
Part # Description Substitute
Part #

n/a n/a 540-4859 [F] StorEdge S1 - AC Assembly without Disk n/a

n/a n/a 540-4952 [F] StorEdge S1 - DC Assembly without Disk n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system

Exploded View

Table Legend

[F] = Field Replaceable Unit (FRU)

CODE	MANUFACTURING PART #	DESCRIPTION
NS	370-3911	Fan Assembly
NS	340-6229	19-inch Rack Mount Bracket
NS	501-5959 [F]	LED Board
NS	540-4860	Chassis Assembly
NS	540-4962	Front Bezel Assembly
NS	370-3760	Empty Drive Filler
