Netra[tm] st D130 Storage Array - Full Components List

Cables
Disk
Miscellaneous
Power
Rack Mount Kit
SCSI
System Board
Netra st D130 (FRU)

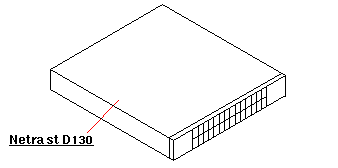

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Cables
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X959A 595-5269 [F] 530-2846 [F] External SCSI Right 90° Cable HD68 to VHDCI68, 2M 595-5269 [F]
X1134A 595-5661 530-2383 [F] External SCSI Cable HD68 to HD68, .8M n/a
X1139A 595-5662 530-2384 [F] External SCSI Cable HD68 to HD68, 2M n/a
X6917A 595-5326 [F] 530-2905 [F] External SCSI Right 90° Cable HD68 to VHDCI68, .5M 595-5326 [F]
Disk
Option # Top Level
Part #
Assembly FRU Manufacturing
Part #
Description Substitute
Part #
X5239A 595-5367 540-4401 [F]

Netra NEBS FRU
w/ 1" Bracket 540-3024
w/ Plate 340-4288 or 340-6640
or 340-5928 or 340-7269
390-0002 [F] Seagate ST318203LC
(18.2GB - 10000 RPM)
390-0038 [F]
390-0060 [F]
390-0043 Fujitsu MAJ3182MC
(18.2GB - 10000 RPM)
n/a
390-0048 IBM DDYS-T18350
(18.2GB - 10000 RPM)
n/a
390-0085 [F] Seagate ST318305LC
(18.2GB - 10000 RPM)
390-0002 [F]
390-0038 [F]
390-0060 [F]
X5244A 595-5673 540-4689 [F]

Netra NEBS FRU
w/ 1" Bracket 540-3024
w/ Plate 340-4288 or 340-6640
or 340-5928 or 370-7269
390-0050 [F] Seagate ST336704LC
(36.4GB - 10000 RPM)
390-0069 [F]
390-0051 Fujitsu MAJ3364MC
(36.4GB - 10000 RPM)
n/a
390-0052 IBM DDYS-T36950
(36.4GB - 10000 RPM)
n/a
390-0069 [F] Seagate ST336605LC
(36.4GB - 10000 RPM)
390-0050 [F]
390-0109 [F] Seagate ST336607LC
(36.4GB - 10000 RPM)
n/a
Miscellaneous
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X949A 595-5302
130-4361
230-1708
230-1711
Wago DC Connector Set:
DC Connector (×10)
DC Connector Strain Relief (×10)
DC Connector Opening Lever
n/a
X6918A 595-5327 540-4377 Replacement Front Bezel n/a
Power - DC
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
n/a n/a 300-1447 130W DC Power Supply n/a
Power - AC
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
n/a n/a 300-1432
300-1448
AC Input Power Supply (pre-release)
130W AC Input Power Supply
n/a
Rack Mount Kit
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X6919A 595-6231 n/a 19-inch Rack Mount Kit n/a
X6920A 595-6231 n/a 19-inch Rack Mount Kit
(Sun Fire 3800-6800 servers)
n/a
X6967A 595-5323 n/a 24-inch Rack Mount Kit n/a
X6966A 595-5322 n/a 23-inch Rack Mount Kit n/a
X6968A 595-5324 n/a 600 mm Rack Mount Kit n/a
SCSI
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1032A 595-4258 501-5656 [F] Single-Ended Ultra/Wide SCSI (SunSwift PCI) 501-2741 [F]
X6540A 595-4399 375-0005 [F] Dual Single-Ended Ultra/Wide SCSI (PCI) n/a
System Board
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
n/a n/a 501-5450 Netra st D130 Motherboard n/a
Netra st D130 (FRU)
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
n/a n/a 540-4175 [F] Netra st D130 - DC Power without Disk n/a
n/a n/a 540-4176 [F] Netra st D130 - AC Power without Disk n/a


Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system



Exploded View



Table Legend
[F] = Field Replaceable Unit (FRU)

CODE MANUFACTURING
PART #
DESCRIPTION
NS 340-6314 Filter
NS 340-6229 19-inch Rack Mount Bracket
NS 370-3911 Fan Assembly
NS 501-5476 LED Board
NS
NS
NS
NS
540-4129
340-5722
340-5723
340-5724
Chassis Assembly
Bottom Cover
Top Cover
Drive Bracket
NS
NS
NS
NS
NS
540-4377
330-2884
330-2926
340-6122
340-6369
Front Bezel Assembly
Bezel
Front Bezel
Insert Bezel
Screen Bezel
