Netra[tm] E1 PCI System Expander - Full Components List

Cables
Miscellaneous
Power
Rack Mount Kit
Netra E1 (FRU)
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Cables
n/a	n/a	530-2977 [F]	PCI Expansion Cable	n/a
n/a	n/a	530-3052	Front LED Cable	n/a
n/a	n/a	530-3035	Rear LED Cable	n/a
n/a	n/a	180-1097 [F]	Power Cord	n/a

Miscellaneous

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
n/a	n/a	375-0129 [F]	Host Interface Card	n/a
n/a	n/a	540-4639	PCI Card Cage	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Power - AC
n/a	n/a	300-1488 [F]	Delta DPS-129AB AC Input Power Supply Type A160	n/a
n/a	n/a	540-4741 501-5881	Power Distribution Assembly Power Distribution Board	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Power - DC
n/a	n/a	300-1489 [F]	Delta DC Input Power Supply Type D137	n/a
n/a	n/a	540-4741 501-5881	Power Distribution Assembly Power Distribution Board	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Rack Mount Kit
X6919A	595-6231	n/a	19-inch Rack Mount Kit (included)	n/a
X6967A	595-5323	n/a	24-inch Rack Mount Kit	n/a
X6966A [S]	595-5322	n/a	23-inch Rack Mount Kit	n/a
X6968A [S]	595-5324	n/a	600 mm Rack Mount Kit	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Netra E1 (FRU)
X1184A	595-5820	540-4640 [F]	Netra E1 PCI System Expander	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system

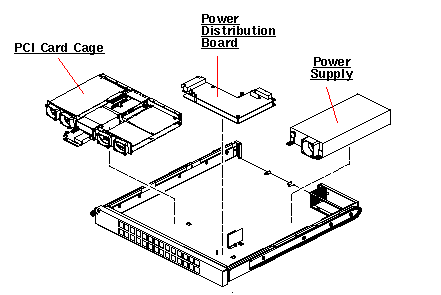

Exploded View

Table Legend

[F] = Field Replaceable Unit (FRU)

MANUFACTURING PART #	DESCRIPTION
540-4640 [F] 540-4641 [F] 300-1488 [F] 300-1489 [F] 530-3052 540-4639 370-3911 501-5789 501-5790 501-5791 530-3035 540-4690 540-4691 540-4692 330-3184 340-6613 340-6614 340-6736 540-4741 501-5881 340-6810	AC Chassis Assembly/FRU DC Chassis Assembly/FRU A160 AC Input Power Supply D137 AC Input Power Supply Front LED Cable PCI Cardcage Assembly Fan (×4) Baseboard Riser Board A Riser Board B Rear LED Cable Stiffener Cage Chassis Assembly Rack Mount Slide Base Cover Mesh Power Distribution Assembly Power Distribution Board Power Distribution Unit Frame
530-2977 [F]	PCI Expansion Cable
375-0129 [F]	Host Interface Board
