Sun StorEdge[tm] L3500 Tape Library: Full Components List

Board
Cable
Host Bus Adapter/Controller
    Power Supply
Tape Drive

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Board
Option # Manufacturing
Part #
Description Substitute
Part #
n/a 370-2851 [F] Actuator Driver Board n/a
n/a 370-3295 [F] Robotic Controller Board n/a
n/a 370-3299 [F] Tape Drive Distribution Board n/a
Cable
Option # Manufacturing
Part #
Description Substitute
Part #
n/a 150-1890 [F] Differential SCSI Terminator n/a
n/a 370-2860 [F] Y-Axis Umbilical Cable n/a
n/a 370-3300 [F] X-Axis Umbilical Cable n/a
n/a 530-2515 External SCSI Jumper Cable, HD68 to HD68 n/a
n/a 530-2352 [F] External SCSI Cable, HD68 to HD68, 4M n/a
Host Bus Adapter/Controller
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X6541A 595-4414 375-0006 [F] Dual Differential Ultra/Wide SCSI (PCI) n/a
X1062A [S] 595-3257 370-1704 [F] Differential Fast/Wide SCSI (DWIS/S) n/a
Power Supply
Option # Manufacturing
Part #
Description Substitute
Part #
n/a 300-1338 [F] ATL 326 Watt Power Supply n/a
n/a 300-1339 [F] ATL 100 Watt Power Supply 300-1512 [F]
Tape Drive
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
Previous
Part #
X6063A 595-4446 370-3332 [F] * DLT[tm] 7000 Differential SCSI 8MB Internal Cache n/a 370-3272 [S] [F]
n/a n/a 370-3262 Tape Drive Interface Board n/a n/a
* - This part is a FRU in Canada. ATL has taken over support of this part in most other locations.

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

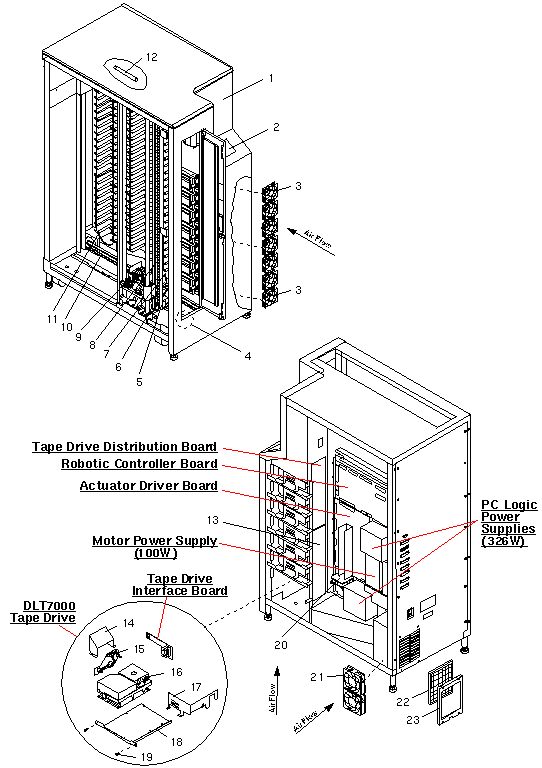

Exploded View


Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
1
1
595-4444
595-4445
ETL 2/3500 / StorEdge L3500 2 Drive Assembly
ETL 7/3500 / StorEdge L3500 7 Drive Assembly
2 370-3255 [F] Touch Panel Assembly (-02 or higher required)
3 370-3297 [F] 31.8 CFM Fan Assembly
4 370-2859 [F] Door Switch Assembly
5 370-2858 [F] X-Axis Confirmation Sensor
6 370-2855 [F] Y-Axis Stepper Motor Assembly
7 370-2854 [F] X-Axis Interconnect Board
8 370-3305 [F] Y-Axis Drive Belt, 188"
9 370-2863 [F] Extension Axis Assembly (-02 required)
10 370-3304 [F] X-Axis Drive Belt, 240"
11 370-2856 [F] X-Axis Stepper Motor Assembly
12 370-2866 [F] Fluorescent Bulb
13 370-3298 [F] Tape Drive Multiplexor Board
14 None Tape Drive Fan Shield
15 370-3261 Stepper Motor Assembly
16 None DLT7000 Tape Drive
17 None Tape Drive Mounting Bracket
18 None Tape Drive Shelf
19 None #10-32 × 1/2" Screw with Washer
20 370-3297 [F] Controller Electronics Assembly Fan
21 370-3296 [F] 108 CFM Fan Assembly
22 None Air Filter, 7.5" × 6"
23 None Air Filter Cover
NS 370-2857 [F] Load Port Door Lockout Solenoid
NS 370-2188 Data Cartridge
NS 370-2189 Cleaning Cartridge
