Sun Enterprise[tm] 6500 Server - Full Components List

Backplanes
Boot PROM
Communication
CPU Module
Disks
Ethernet
Fibre Channel
Graphics
IDPROM
I/O Board
     Input Devices
Memory
Miscellaneous
Power
Removable Media
SCSI
System Board

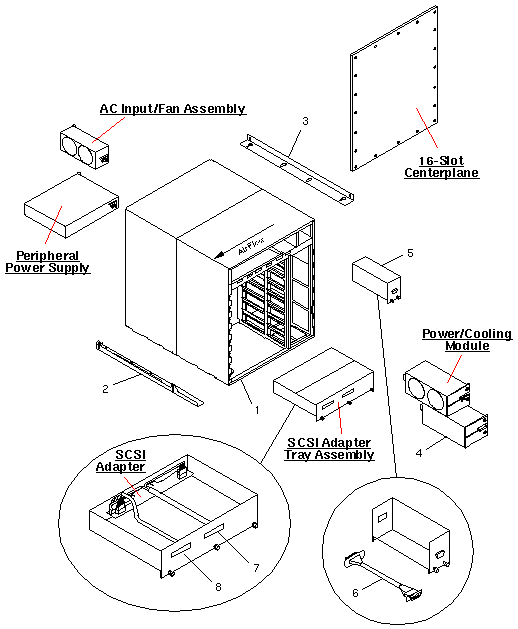

Exploded View

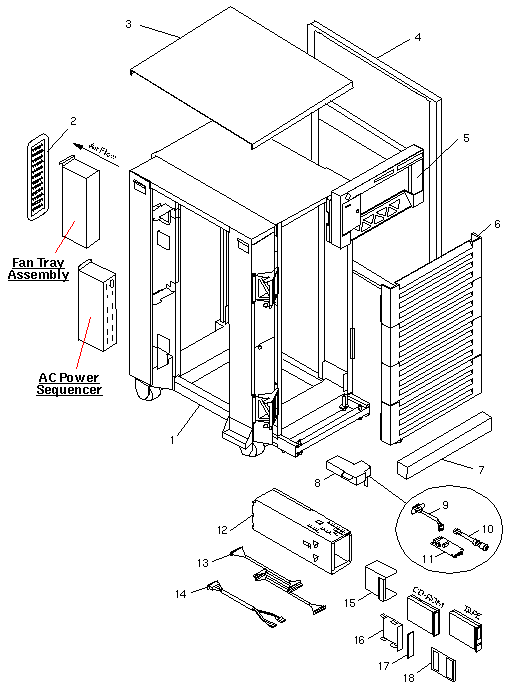

Cabinet Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Backplanes
Option # Top Level
Part #(s)		 Manufacturing
Part #(s)		 Description Substitute
Part #(s)
n/a n/a 501-5010 [F] 16-Slot Centerplane 501-3050 [F]
Boot PROM
Socket Manufacturing
Part #		 Patch
U3101 525-1387 103346
Communication
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1071A 605-1636 370-3878 [F] HIPPI/P 1.1 High Performance Interface Board n/a
X1145A 605-1612 501-1725 [F] High Speed Serial Interface/SBus (HSI/S) 3.0 n/a
X1155A 605-1611 370-2728 [F] High Speed Serial Interface PCI (HSI/P) 2.0 n/a
X1157A 605-1623 501-3028 [F] SunATM-155/MFiber PCI 4.0 n/a
X1158A 605-1624 501-3027 [F] SunATM-155/UTP PCI 4.0 n/a
X1159A 605-1625 501-3029 [F] SunATM-622/MFiber PCI 4.0 n/a
X2156A 605-1644 375-0100 [F] Serial Asynchronous Interface PCI (SAI/P) 3.0 n/a
X1008A [S] 605-1291 501-1931 [F] Serial Parallel Controller SBus (SPC/S) n/a
X1012A [S] 605-1319 501-2603 [F] SunLink ISDN 501-1849 [F]
X1014A [S] 605-1438 501-1932 [F] Token Ring Interface/SBus (TRI/S) n/a
X1019A [S] 605-1439 501-1725 [F] High Speed Serial Interface/SBus (HSI/S) n/a
X1023A [S] 605-1559 370-2715 [F] FDDI/S Single-Attach SBus (SAS) 4.0 n/a
X1024A [S] 605-1560 370-2716 [F] FDDI/S Dual-Attach SBus (DAS) 4.0 n/a
X1025A [S] 605-1571 370-2339 [F] FDDI/S Single-Attach SBus (SAS) 5.0 370-3142 [F]
X1026A [S] 605-1572 370-2340 [F] FDDI/S Dual-Attach SBus (DAS) 5.0 370-3143 [F]
X1035A [S] 605-1583 370-2811 [F] FDDI/P SAS Adapter PCI 1.0 n/a
X1036A [S] 605-1584 370-2812 [F] FDDI/P DAS Adapter PCI 1.0 n/a
X1039A [S] 605-1590 375-0001 [F] Token Ring Interface PCI (TRI/P) 1.0 375-0003 [F]
X1040A [S] 605-1581 370-2728 [F] High Speed Serial Interface PCI (HSI/P) 1.0 n/a
X1041A [S] 605-1582 370-2810 [F] Serial Asynchronous Interface PCI (SAI/P) 1.0 375-0100 [F]
X1050A [S] 605-1493 501-2523 [F] SunATM-155/MFiber SBus 1.0 n/a
X1051A [S] 605-1504 501-2665 [F] SunATM-155/UTP5 SBus 1.0 n/a
X1060A [S] 605-1543 501-2794 [F] SunATM-155/MFiber SBus 2.X n/a
X1061A [S] 605-1545 501-2795 [F] SunATM-155/UTP SBus 2.X n/a
X1064A [S] 605-1544 501-2864 [F] SunATM-622/MFiber SBus 2.X n/a
X1066A [S] 605-1599 501-3028 [F] SunATM-155/MFiber PCI 3.0 n/a
X1067A [S] 605-1598 501-3027 [F] SunATM-155/UTP PCI 3.0 n/a
X1068A [S] 605-1600 501-3029 [F] SunATM-622/MFiber PCI 3.0 n/a
X1070A [S] 605-1631 370-3878 [F] HIPPI/P 1.0 High Performance Interface Board n/a
X1133A [S] 595-5655 375-0130 [F] Crypto Accelerator I n/a
X1142A [S] 605-1610 370-3142 [F] FDDI/S Single-Attach SBus (SAS) 6.0 n/a
X1143A [S] 605-1609 370-3143 [F] FDDI/S Dual-Attach SBus (DAS) 6.0 n/a
X1144A [S] 605-1616 501-1932 [F] Token Ring Interface/SBus (TRI/S) 4.0 n/a
X1146A [S] 595-5036 501-1931 [F] Serial Parallel Controller SBus (SPC/S) 3.0 n/a
X1147A [S] 605-1620 501-2794 [F] SunATM-155/MFiber SBus 4.0 n/a
X1148A [S] 605-1621 501-2795 [F] SunATM-155/UTP SBus 4.0 n/a
X1149A [S] 605-1622 501-2864 [F] SunATM-622/MFiber SBus 4.0 n/a
X1152A [S] 605-1608 370-2811 [F] FDDI/P SAS Adapter PCI 2.0 n/a
X1153A [S] 605-1607 370-2812 [F] FDDI/P DAS Adapter PCI 2.0 n/a
X1154A [S] 605-1615 375-0001 [F] Token Ring Interface PCI (TRI/P) 4.0 375-0003 [F]
X1156A [S] 605-1613 370-2810 [F] Serial Asynchronous Interface PCI (SAI/P) 2.0 375-0100 [F]
X2144A [S] 605-1645 501-1932 [F] Token Ring Interface/SBus (TRI/S) 5.0 n/a
X2154A [S] 605-1590 375-0073 [F] Token Ring Interface PCI (TRI/P) 5.0 n/a
CPU Module
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
- - UltraSPARC Module Installation -
X2560A 595-4738 501-4363 [F] 336MHz UltraSPARC II Module
(4MB Cache Sapphire-Black)		 n/a
X2580A
(since April 2001)		 595-5206 501-6009 [F] 400MHz UltraSPARC II Module
(8MB Cache Sapphire-Black)
IBM Sombra Mirrored Data SRAM
IBM Mirrored Tag SRAM		 501-5814 [F]
501-5815 [F]
X2590A 595-6032 501-5798 [F] 464MHz UltraSPARC II Module
(8MB Cache Blaze)
Sony Espejo Mirrored Data SRAM
Sony Mirrored Tag SRAM		 501-5816 [F]
501-5816 [F] 464MHz UltraSPARC II Module
(8MB Cache Blaze)
IBM Sombra Mirrored Data SRAM
IBM Mirrored Tag SRAM		 501-5798 [F]
X2500A [S] 595-4064 501-2941 [F] 167MHz UltraSPARC Module (512KB Cache Blackbird) n/a
X2510A [S] 595-4180 501-2959 [F] 167MHz UltraSPARC Module (1MB Cache Blackbird) n/a
X2530A [S] 595-4343 501-4178 [F] 250MHz UltraSPARC II Module (1MB Cache Blackbird) n/a
X2550A [S] 595-4410 501-4836 [F] 250MHz UltraSPARC II Module (4MB Cache Blackbird)
SRAM 100-5528		 501-4249 [F]
X2580A [S] n/a 501-6008 [F] 400MHz UltraSPARC II Module
(8MB Cache Sapphire-Black)
IBM Sombra Mirrored Data SRAM		 501-5838 [F]
501-5838 [F] 501-6008 [F]
X2580A [S] n/a 501-5762 [F] 400MHz UltraSPARC II Module
(8MB Cache Sapphire-Black)		 n/a
501-5661 [F] 501-5235 [F]
501-5235 [F] 501-5661 [F]
Disks
Option # Top Level
Part #		 Assembly FRU Description Substitute
Part #
X5164A 595-5469 501-3113 [F]
0GB Disk Board		 36.4GB Disk Board
(2 × 18.2GB - 10000 RPM)		 n/a
540-4177 [F]

Spud Bracket Disk FRU
w/ 1" Bracket 540-3024
X5161A [S] 595-4051 501-3113 [F]
0GB Disk Board		 4.2GB Disk Board
(2 × 2.1GB - 7200 RPM)		 n/a
540-2936 [F]

Spud Bracket Disk FRU
w/ 1" Bracket 540-3024
X5162A [S] 595-4877 501-3113 [F]
0GB Disk Board		 8.4GB Disk Board
(2 × 4.2GB - 7200 RPM)		 n/a
540-2938 [F]

Spud Bracket Disk FRU
w/ 1" Bracket 540-3024
X5163A [S] 595-5257 501-3113 [F]
0GB Disk Board		 18.2GB Disk Board
(2 × 9.1GB - 7200 RPM)		 n/a
540-3704 [F]

Spud Bracket Disk FRU
w/ 1" Bracket 540-3024
Ethernet
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1033A 595-4498 501-5019 [F] SunFastEthernet PCI Adapter 2.0 (FE/P) 501-4359 [F]
X1034A 605-1594 501-5406 [F] Quad FastEthernet PCI Card (QFE/P) 501-4366 [F]
X1049A 605-1597 501-5443 [F] Quad FastEthernet 2.0 SBus Card (SQFE/S) 501-4837 [F]
X1059A 605-1535 501-2919 [F] SunFastEthernet Adapter 2.0 (Colossus Lite) n/a
X1140A 605-1602 501-4375 [F] Gigabit Ethernet 2.0 SBus Card (GBE/S) n/a
X1141A 605-1601 501-4373 [F] Gigabit Ethernet 2.0 PCI Card (GBE/P) n/a
X1150A 595-5812 501-5902 [F] Sun GigaSwift Ethernet UTP n/a
X1151A 595-5773 501-5524 [F] Sun GigaSwift Ethernet MMF n/a
X467A [S] 595-3780 [F] n/a MII to AUI Converter n/a
X1042A [S] 605-1587 501-4302 [F] Quad FastEthernet 1.0 SBus Card (SQFE/S) 501-4837 [F]
501-5443 [F]
X1044A [S] 605-1591 375-0002 [F] Gigabit Ethernet 1.0 PCI Card (GBE/P) n/a
X1045A [S] 605-1592 375-0003 [F] Gigabit Ethernet 1.0 SBus Card (GBE/S) n/a
X1056A [S] 605-1519 501-2655 [F] SunFastEthernet 1.0 Adapter n/a
X1058A [S] 605-1520 501-2062 [F] SBus Quad Ethernet Controller (SQEC/S) n/a
Fibre Channel
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X595A 595-3214 370-1426 [F] Fibre Channel Optical Module (FC/OM) n/a
X1057A 595-3213 501-2069 [F] SBus Optical Channel Host Adapter (SOCHA) n/a
X6727A 595-5853 375-3030 [F] PCI Dual FC Network Adapter+ n/a
X6730A 595-4303 540-2989
501-5266 [F]		 FC-AL SBus Host Adapter (FC100/S)
501-5202 [F]
X6731A 595-4359 370-2303 [F] FC-AL SW-GBIC Module n/a
X6746A 595-5816 540-4372 [F] StorEdge Network FC Switch-8 n/a
X6757A 595-5943 375-3048 [F] SBus Dual FC Network Adapter n/a
X6767A 595-6425 375-3102 [F] 2GB PCI Single FC Network Adapter n/a
X6768A 595-6426 375-3108 [F] 2GB PCI Dual FC Network Adapter n/a
X6799A 595-5830 375-3019 [F] PCI Single FC Host Adapter n/a
Graphics
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1085A 595-3018 501-3019 [F] SunVideo Board 501-2232 [F]
X3667A 595-5192 540-3979 [F] Elite3D-m6 24-Bit Frame Buffer n/a
X3668A 595-5146 370-3753 [F] PGX32 8/24-Bit Color Frame Buffer n/a
X3768A 605-4639 370-4362 [F] PGX64 8/24-Bit Color Frame Buffer n/a
X3653A [S] 595-4043 501-4127 [F] Creator Series 1 (FFB) 24-Bit Frame Buffer n/a
X3655A [S] 595-3217 501-2955 [F] TurboGXplus 8-Bit Frame Buffer 501-2253 [F]
X3657A [S] 595-4499 501-4173 [F] Creator3D Series 2 (FFB2) 24-Bit Frame Buffer n/a
X3671A [S] 595-4606 501-4790 [F] Creator3D Series 3 (FFB2+) 24-Bit Frame Buffer n/a
X7110A [S] 595-3865 501-2922 [F] TurboGX 8-Bit Frame Buffer 501-2325 [F]
IDPROM
Socket Manufacturing
Part #		 Component Type Host ID
U0205 (Clock)
U2501 (I/O)		 100-4007 48T59 NVRAM 80xxxxxx
I/O Board
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #		 Previous
Part #
X2612A 595-4710 501-4883 [F] SBus I/O Board with SOC+ n/a n/a
X2622A 595-4711 501-4884 [F] Graphics I/O Board with SOC+ n/a n/a
X2632A 605-1604 501-4926 [F] PCI I/O Board n/a n/a
n/a n/a 501-4128 [F] PCI I/O Riser Board (3.3V) n/a n/a
501-4169 [F] PCI I/O Riser Board (5V) n/a n/a
X2610A [S] 595-3922 501-4287 [F] SBus I/O Board 501-2977 [F] n/a
X2611A [S] 595-4608 501-4266 [F] SBus I/O Board with SOC+ 501-4883 [F] n/a
X2620A [S] 595-3923 501-4288 [F] Graphics I/O Board n/a 501-2749 [F]
X2630A [S] 605-1596 501-4325 [F] PCI I/O Board n/a n/a
Input Devices
Option # Top Level
Part #(s)		 Manufacturing
Part #(s)		 Description Substitute
Part #(s)
X485A [S] 595-3277 [F] 370-1804 Color Video Camera (to add to X1085A) n/a
X487A [S] 595-3455 595-3277 [F] SunVideo SBus Kit (X1085A + X485A) 595-3723 [F]
X495A [S] F370-1414 [F] 370-1414 [F] SunMicrophone n/a
Memory
Option # Top Level
Part #		 Manufacturing
Part #		 Option Description Substitute
Part #
X7023A 595-3870 501-2654 [F] (128MB) 1 GB (8 × 128MB DIMMs) n/a
X7026A 595-5405 501-5658 [F] (256MB) 2 GB (8 × 256MB DIMMs) n/a
X6738A 595-5139 375-0087 [F] 32MB Fast Write Cache n/a
X7021A [S] 595-3868 501-2652 [F] (8MB) 64 MB (8 × 8MB DIMMs) n/a
X7022A [S] 595-3869 501-2653 [F] (32MB) 256 MB (8 × 32MB DIMMs) n/a
Miscellaneous
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X956A 595-4017 540-2709 [F]
501-2900		 Fan Controller Assembly (Fan Tray Assembly)
Fan Controller		 n/a
X1030A 595-3375 501-2367 [F] PCMCIA Interface/SBus Card n/a
X9625A 595-4990 340-3302 68-inch Cabinet Air Baffle Kit n/a
X9626A 595-4998 340-5205 Second Sequencer Mounting Bracket n/a
X9602A [S] n/a 595-4238 Floor Mount Brackets n/a
X9620A [S] 595-4929 300-1403 [F] Second Sequencer for 68-inch Rack n/a
Power - DC
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X954A 595-4059 300-1444 [F] FDK PEX690-31 300 Watt Power/Cooling Module (Type A146) n/a
X958A 595-4062 300-1301 [F] FDK PEX705-30 184 Watt Peripheral Power Supply (Type A105) n/a
Power - AC
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X6513A 595-4253 300-1403 [F] 230V AC Power Sequencer 300-1290 [F]
n/a AC Power Sequencer Power Requirements
n/a n/a 370-1812 [F] 230V AC Input/Fan Assembly n/a
Removable Media
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
n/a n/a 390-0025 [F] 10X DVD-ROM Drive (standard configuration) n/a
X6283A 595-4165 370-2376 [F] 12-24GB 4 mm DDS-3 Tape Drive (Medium Grey Bezel) n/a
X6296A 595-5432 390-0027 [F] 20-40GB 4 mm DDS-4 Tape Drive
(Medium Grey Bezel)		 n/a
X6104A [S] 595-4019 370-2202 [F] 2.5GB 1/4" Tape Drive (Medium Grey Bezel) n/a
X6206A [S] 595-3971 370-2200 [F] 7-14GB 8 mm Tape Drive (Medium Grey Bezel) n/a
X6238A [S] 595-4884 370-2184 [F] 20-40GB 8 mm Tape Drive (Medium Grey Bezel) n/a
X6259A [S] 595-3934 370-2177 [F] 4-8 GB 4 mm DDS-2 Tape Drive (Medium Grey Bezel) 370-2376 [F]
n/a n/a 370-3416 [F] SunCD 32 (standard configuration)
(until December 2000)		 n/a
SCSI
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1032A 595-4258 501-5656 [F] Single-Ended Ultra/Wide SCSI (SunSwift PCI) 501-2741 [F]
X1063A 595-3258 370-1703 [F] Single-Ended Fast/Wide SCSI-2 Host Adapter (SWIS/S) n/a
X1065A 595-4187 370-2443 [F] Differential Ultra/Wide SCSI Host Adapter (UDWIS/S) n/a
X1018A 605-1568 501-2739 [F] Single-Ended Fast/Wide (SunSwift) n/a
n/a n/a 540-2713 [F]
501-2600		 SCSI Adapter Tray Assembly
SCSI Adapter		 n/a
X1052A [S] 595-2731 501-1902 [F] Fast Differential SCSI-2/Buffered Ethernet Card (DSBE/S) n/a
X1053A [S] 595-2724 501-2015 [F] Fast SCSI-2/Buffered Ethernet Card (FSBE/S) 501-2981 [F]
X1062A [S] 595-3257 370-1704 [F] Differential Fast/Wide SCSI-2 Host Adapter (DWIS/S) n/a
System Board
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X2602A 595-4709 501-4882 [F] CPU/Memory Board - 0MB FRU w/o Module, 83/90/100MHz Gigaplane n/a
n/a n/a 501-4946 [F] Clock Board - 83/90/100MHz Gigaplane (1:2, 1:3, 1:4 clock ratios) 501-5365 [F]
501-5365 [F] Clock Board - 83/90/100MHz Gigaplane (add 1:5, 1:6 clock ratios) n/a
X2600A [S] 595-3921 501-2976 [F] CPU/Memory Board - 0MB FRU w/o Module, 83MHz Gigaplane
(2MB cache per module)		 501-4312 [F]
501-4882 [F]
X2601A [S] 595-4411 501-4312 [F] CPU/Memory Board - 0MB FRU w/o Module, 83MHz Gigaplane
(8MB cache per module)		 501-4882 [F]

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system


Exploded View

Main System

(go to Cabinet View)

Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
1 540-3572
540-4165		 16-Slot E6500 Chassis Assembly
16-Slot E6501 Chassis Assembly
2 340-3473
340-3474		 Lower Left Chassis Mounting Bracket
Lower Right Chassis Mounting Bracket
3 340-3169 Upper Chassis Mounting Bracket
4 540-2593 [F] Power/Cooling Module Filler Panel
5
6		 370-2073 [F]
530-2214		 Keyswitch Adapter Assembly/FRU
Keyswitch Adapter Cable
7
8		 530-2218
530-2217		 DC Wire Harness
Internal SCSI Cable, 26 cm
NS 262-4121 E6500 Nameplate
NS 330-2014 [F] Power Key
NS 530-1871 [F] RJ45 to RJ45 Cable, 4M
NS 530-2093 [F] Shielded RJ45 to RJ45 Cable, 4M
NS 530-2213 [F] AC Input Power Cable, IEC320 C19-C20
NS 530-2224 [F] SCSI Adapter Tray to SCSI Tray SCSI Cable, 1.0M
NS 530-2325 [F] AC Input and Fan Assembly to AC Sequencer Cable
NS 530-2587 [F] Keyswitch Adapter to Keyswitch to SCSI Tray Fan Cable
NS 530-2645 [F] AC Sequencer to Fan Tray Sense Cable
NS 530-2655 [F] SCSI Adapter Tray to SCSI Tray Power Cable
NS 501-3142 [F] Load Board (required in all unused slots)


Exploded View

68-inch Data Center Cabinet


Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
1 540-3571 68-inch Data Center Cabinet Assembly
NS 340-4628 SCSI Tray Support Bracket
2 340-3267 Fan Tray Rear Cover
3 340-3352 Medium Grey Top Panel
4 340-3671 Medium Grey Side Panel
5
-
-		 540-2746
330-1973
330-1983		 Top Bezel Assembly
Clear Plastic Label Cover
Blank Filler Panel Insert
5
-		 540-4087
540-4162		 Top Bezel Assembly (replaced 540-2746)
Bezel Insert with Left/Right Doors
NS 330-1982 Filler Panel Insert with 4 Tape Drive Cutouts
NS 330-2379 Filler Panel Insert with 2 Tape Drive Cutouts
6 540-3554
540-4163		 Door with 4 Vented Panels
Door with 4 Vented Panels (replaced 540-3554)
7 340-3355 Medium Grey Anti-Tilt Panel
8
9
10
11		 370-2161 [F]
530-2148 [F]
530-2227
501-5329 [F]		 Keyswitch and LED Assembly
PCB to Remote Keyswitch Cable
Keyswitch Cable
LED Board (replaced 501-2599)
12
12
13
14
15
NS		 540-3577 [F]
340-4657
530-2528 [F]
530-2216 [F]
340-3264
370-3321		 Peripheral Tray Assembly with Fan
Peripheral Tray
Internal SCSI Cable, 990 mm
DC Wire Harness
Mounting Bracket
92 mm Fan
16
17
18		 340-3341
330-1939
340-3270		 Filler Panel Bracket
Filler Panel
Peripheral Mounting Bracket
NS 330-2014 [F] Power Key
NS 340-5205 Front Power Sequencer Mounting Bracket
NS 340-4624 Hinged Rear Panel, Medium Grey

WebToneWebToneWebToneWebTone
 Copyright 1994-2003 Sun Microsystems, Inc.,  901 San Antonio Road, Palo Alto, CA 94303 USA.  All rights reserved.
 Legal Terms Privacy Policy Feedback
