Sun Enterprise[tm] 420R Server - Full Components List

Boot PROM
Communication
CPU Module
Disks
Ethernet
Fibre Channel
Graphics
IDPROM
     Memory
Miscellaneous
Power
Removable Media
SCSI
System Board
Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Boot PROM
Socket Manufacturing
Part #		 Patch
U3007 525-1780 109082
Communication
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1155A 605-1611 370-2728 [F] High Speed Serial Interface (HSI/P) 2.0 n/a
X1157A 605-1623 501-3028 [F] SunATM-155/MFiber 4.0 n/a
X1158A 605-1624 501-3027 [F] SunATM-155/UTP 4.0 n/a
X1159A 605-1625 501-3029 [F] SunATM-622/MFiber 4.0 n/a
X2156A 605-1644 375-0100 [F] Serial Asynchronous Interface (SAI/P) 3.0 n/a
X6762A 595-6296 375-3089 [F] Crypto Accelerator 1000 n/a
X1133A [S] 595-5655 375-0130 [F] Crypto Accelerator I n/a
X1152A [S] 605-1608 370-2811 [F] FDDI/P SAS 2.0 n/a
X1153A [S] 605-1607 370-2812 [F] FDDI/P DAS 2.0 n/a
X2154A [S] 605-1643 375-0073 [F] Token Ring Interface (TRI/P) 5.0 n/a
CPU Module
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1195A [S] 595-5220 501-6071 [F] * 450MHz UltraSPARC II Module
4MB Cache Sapphire-Black 		n/a
n/a n/a 501-5999 450MHz UltraSPARC II Module
4MB Cache Blaze 		n/a
n/a n/a 501-5687 [F] 450MHz UltraSPARC II Module
4MB Cache Sapphire-Black/Blaze 		501-5539 [F]
501-6071 [F]
n/a n/a 501-5539 [F] * 450MHz UltraSPARC II Module
4MB Cache Sapphire-Black 		501-5344 [F]
501-6071 [F]
* Mixing 501-6071 and 501-5539 in the same system is not recommended.
Disks
Option # Top Level
Part #		 Assembly FRU Manufacturing
Part #		 Description Substitute
Part #
X5237A 595-5198 540-4177 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024		 390-0006 Fujitsu MAG3182LC
(18.2GB - 10000 RPM)		 n/a
390-0002 [F] Seagate ST318203LC
(18.2GB - 10000 RPM)		 390-0038 [F]
390-0060 [F]
390-0038 [F] Seagate ST318404LC
(18.2GB - 10000 RPM)		 390-0002 [F]
390-0060 [F]
390-0043 Fujitsu MAJ3182MC
(18.2GB - 10000 RPM)		 n/a
390-0048 IBM DDYS-T18350
(18.2GB - 10000 RPM)		 n/a
390-0066 Fujitsu MAN3184MC
(18.2GB - 10000 RPM)		 n/a
390-0085 [F] Seagate ST318305LC
(18.2GB - 10000 RPM)		 390-0002 [F]
390-0038 [F]
390-0060 [F]
X5242A 595-5496 540-4521 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024		 390-0051 Fujitsu MAJ3364MC
(36.4GB - 10000 RPM)		 n/a
390-0050 [F] Seagate ST336704LC
(36.4GB - 10000 RPM)		 390-0069 [F]
390-0065 Fujitsu MAN3367MC
(36.4GB - 10000 RPM)		 n/a
390-0069 [F] Seagate ST336605LC
(36.4GB - 10000 RPM)		 390-0050 [F]
390-0109 [F] Seagate ST336607LC
(36.4GB - 10000 RPM)		 n/a
X5234A [S] 595-4939 540-3881 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024		 370-3649 Seagate ST39102LC
(9.1GB - 10000 RPM)		 n/a
390-0005 Fujitsu MAG3091LC
(9.1GB - 10000 RPM)		 390-0009 [F]
390-0009 [F] Seagate ST39103LC
(9.1GB - 10000 RPM)		 390-0005
390-0037 [F]
390-0037 [F] Seagate ST39204LC
(9.1GB - 10000 RPM)		 390-0005
390-0009 [F]
Ethernet
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1033A 595-4498 501-5019 [F] SunFastEthernet (FE/P) 501-4359 [F]
X1034A 605-1594 501-5406 [F] Sun Quad FastEthernet (QFE/P) 501-4366 [F]
X1141A 605-1601 501-4373 [F] Gigabit Ethernet 2.0 (GBE/P) n/a
X1150A 595-5812 501-5902 [F] Sun GigaSwift Ethernet UTP n/a
X1151A 595-5773 501-5524 [F] Sun GigaSwift Ethernet MMF n/a
X2069A [S] 595-5414 501-5426 [F] Gigabit Ethernet FC-AL/P n/a
Fibre Channel
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X6727A 595-5853 375-3030 [F] PCI Dual FC Network Adapter+ n/a
X6746A 595-5816 540-4372 [F] StorEdge Network FC Switch-8 n/a
X6767A 595-6425 375-3102 [F] 2GB PCI Single FC Network Adapter n/a
X6768A 595-6426 375-3108 [F] 2GB PCI Dual FC Network Adapter n/a
X6799A 595-5830 375-3019 [F] PCI Single FC Host Adapter n/a
X6729A [S] 595-4685 375-0040 [F] Single Loop PCI FC-AL Host Adapter (FC100/P) n/a
Graphics
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X3668A 595-5146 370-3753 [F] PGX32 8/24-Bit Color Frame Buffer n/a
X3768A 605-4639 370-4362 [F] PGX64 8/24-Bit Color Frame Buffer n/a
X3678A [S] 595-5239 370-3987 [F] Expert3D 24-Bit Color Frame Buffer n/a
IDPROM
Socket Manufacturing
Part #		 Component Type Host ID Substitute
Part #
U3008 525-1785 [F] 48T59 NVRAM 80xxxxxx 525-1430 [F]
Memory
Option # Top Level
Part #		 Manufacturing
Part #		 Option Description Previous
Part #		 Substitute
Part #
X7043A 595-5409 501-5691 [F] (64MB) 128MB (2 × 64MB DIMM), 5V n/a n/a
X7005A 595-4691 501-6056 [F] (256MB) 512 MB (2 × 256MB DIMMS) w/ GAL (Gate Array Logic) 501-4743 [F] 501-6005 [F]
n/a n/a 501-6005 [F] 256MB DIMM w/ GAL n/a 501-6056 [F]
n/a n/a 501-5936 256MB DIMM w/ GAL n/a n/a
n/a n/a 501-5218 [F] Ultra 80 Memory Riser Board n/a n/a
Miscellaneous
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X2132A 605-4646 375-3051 [F] SunPCi IIpro 733MHz coprocessor card n/a
X7042A 595-5694 370-4294 [F] SunPCi II 128MB memory expansion n/a
X7044A 595-5695 370-4295 [F] SunPCi II 256MB memory expansion n/a
X7045A 595-6010 370-4430 [F] SunPCi IIpro 512MB memory expansion n/a
Power - DC
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X9684A [S] 595-5291 300-1449 [F] Lucent 380 Watt Power Supply n/a
n/a n/a 501-5506 [F] DC Power Distribution Board n/a
n/a n/a 300-1407 [F] 125 Watt DC-DC Converter with Fan n/a
Removable Media
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X6168A 595-5558 390-0025 [F] 10X DVD-ROM Drive
(standard configuration)		 n/a
X6286A 595-4379 370-2376 [F] 12-24 GB 4 mm DDS-3 Tape Drive n/a
X6295A 595-5431 390-0028 [F] 20-40GB 4 mm DDS-4 Tape Drive n/a
X6213A [S] 595-4381 370-2882 [F] 7-14 GB 8 mm Tape Drive n/a
n/a n/a 370-3416 [F] SunCD 32 n/a
SCSI
Option # Top Level
Part #		 Manufacturing
Part #		 Description Substitute
Part #
X1032A 595-4258 501-5656 [F] Single-Ended Ultra/Wide SCSI (SunSwift PCI) 501-2741 [F]
X2222A 595-5624 501-5727 [F] Dual FastEthernet + Dual SCSI PCI Adapter n/a
X6540A 595-4399 375-0005 [F] Dual Single-Ended Ultra/Wide SCSI (PCI) n/a
X6541A 595-4414 375-0006 [F] Dual Differential Ultra/Wide SCSI (PCI) n/a
X6758A 595-5945 375-3057 [F] PCI Dual Ultra3 SCSI Host Adapter * n/a
n/a n/a 501-5505 [F] 2-Slot SCSI Disk Backplane n/a
X6542A [S] 595-5074 375-0078 [F] SCSI RAID Controller (SRC/P) n/a
* - The necessary drivers (SUNWqus & SUNWqusu) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see infodoc 47841 for details.
System Board
Option # Manufacturing
Part #		 Description Substitute
Part #
n/a 501-5168 [F] 0MB FRU n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

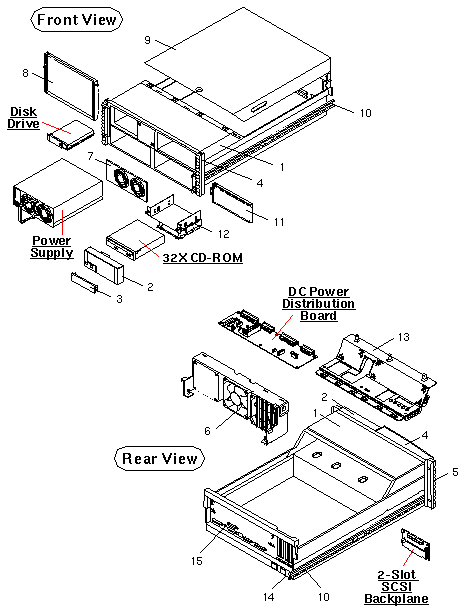

Exploded View



Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
1
2
3
4
5
-		 599-2292
540-4219
330-2400 [F]
330-2911 [F]
330-2910
540-4168		 Enclosure Assembly
RMA Bezel
Floppy Filler Panel
Curved Bezel
4U Trim Strip
Enclosure Assembly with System Board
1
NS
NS
NS
-		 540-4168
330-2805 [F]
540-3948 [F]
540-4048
540-4115		 Enclosure Assembly with System Board
Processor Module Slot Filler Panel
System Board Shroud Assembly / CPU Card Cage
System Board Airguide Assembly
Enclosure Assembly
1
6
6
7
NS
NS
NS
NS
NS
NS
NS
NS
NS
-		 540-4115
540-4434 [F]
540-5088 [F]
340-6001
340-6118
530-2821 [F]
530-2822 [F]
540-4811 [F]
530-2824 [F]
530-2826 [F]
530-2827 [F]
530-2830 [F]
530-2864 [F]
540-4184		 Enclosure Assembly
Fan Tray with 3× 120 mm Fans
Fan Tray with 3× 120 mm Fans, Option 9820
Power Supply Filler Panel
Security Switch Lock
DC Power Signal Cable
DC Power Cable
Keyswitch/LED/Power Cable FRU Assembly
Keyswitch/LED/Power Cable
RMA 8-Bit SCSI Cable
SCSI Cable
Control Cable
I/O Power Cable
Chassis Assembly
1
8
9
10
11
12
13
14
15
NS
NS
NS
NS
1
-
-
-

 540-4184
540-4186 [F]
540-4188
340-6131
540-4230 [F]
540-4253
340-5834
540-4232 [F]
540-4281 [F]
340-5881
370-4099 [F]
530-2819 [F]
530-2861
540-4823
340-5827
340-5830
340-6947
340-5996
340-6948		 Chassis Assembly
Left Door
Rear Enclosure Top Cover
Inner Slide Rail
Right Door
Media Drive Mounting Assembly
Power Distribution Board Cover
AC Outlet
Rear Panel
Ultra 80 System Board Mounting Tray
AC Line Filter
AC Power Cable
AC Ground Cable
Chassis Assembly (replaced 540-4231)
Base Enclosure
Disk Drive Bay
Front Top Cover (replaced 340-5831)
Front Enclosure
Power Bay Cover (replaced 340-5973)
NS 250-1317 [F] Key
NS
NS
NS
NS
NS		 560-2625 [F]
340-6124
340-6125
340-5883
370-5264		 Rail Kit Assembly
Short Rack Mounting Bracket (540-2625-01)
Long Rack Mounting Bracket (540-2625-01)
Outer Slide Rail (540-2625-01)
Mounting Bracket + Rail (540-2625-02)

Note
DC Power cable 530-2864-02 is too short. Use 580-2864-03 or DC Power Extension cable 530-2502.
