SPARCstorage [tm] Array Model 214 RSM [tm]

6503 6504 6506
RSM 214 Tray
3 4.2GB Disks
5400 RPM
RSM 214 Tray
7 4.2GB Disks
5400 RPM
4.2GB Disk
5400 RPM
w/o RSM 214 Tray
6507 6508 6509
RSM 214 Tray
3 4.2GB Disks
7200 RPM
RSM 214 Tray
7 4.2GB Disks
7200 RPM
4.2GB Disk
7200 RPM
w/o RSM 214Tray

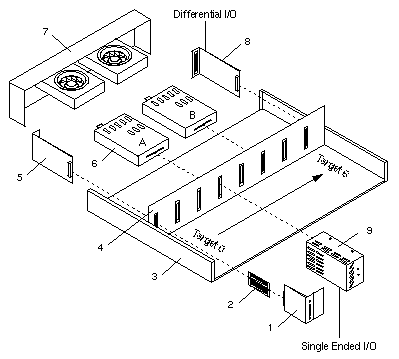

CODE PART # DESCRIPTION



-

1
2
3
4
370-2194
370-2955
540-3085
230-1545
370-2198
None
None
None
None
Chassis, Power Modules, and WD2S Card
Chassis, Power Modules, and WD2S Card
Chassis, Power Modules, Dampers, and WD2S Card
Vibration Dampers (×28)
Chassis FRU
Operator Panel
Operator Panel Cable
Chassis
Centerplane
5 370-2195 Environmental Sensor Card
6
6
300-1311
300-1328
200 Watt Power Supply Modules A and B
200 Watt Power Supply Modules A and B
7 370-2197 Fan Assembly
8
8
370-2196
370-3375
WD2S Single-Ended to Differential Interface Card
WD2S Single-Ended to Differential Interface Card
9
9
540-2784
540-2939
4.2GB 5400 RPM Disk Drive Assembly/FRU
4.2GB 7200 RPM Disk Drive Assembly/FRU
NS 180-1189 230V AC Power Cord, IEC-320 to NEMA 6-15
NS 180-1190 240V AC Power Cord, IEC-320 to Reverse IEC-320
NS 340-3627 Shipping Bracket
NS 530-1351 10A/250V AC Power Cord, IEC-320-c13 to NEMA 6-15p, 2M
NS 530-1343 240V AC Power Cord, IEC-320 to Reverse IEC-320
NS 530-2197 AC Power Cord, AMP Mate-N-Lok to IEC 320
NS 530-2264 AC Power Cord, AMP Mate-N-Lok to Y IEC-320
NS
-
-
-
-
-
370-2343
None
None
None
None
565-1478
Rack Mount Tray (replaced 370-2306)
Tray 4486-3447 (obs) or Tray 4486-9550
Top Bracket 4486-2993
Front Shipping Bracket 4486-3454
Rear Shipping Bracket 4486-9535
Front Bkt 250-1237 and Rear Bkt 250-1238

802-5062 SPARCstorage RSM Installation and Service
