RSM [tm] Array 2000 / StorEdge [tm] A3000

6536
w Disks
w/o RSM Tray

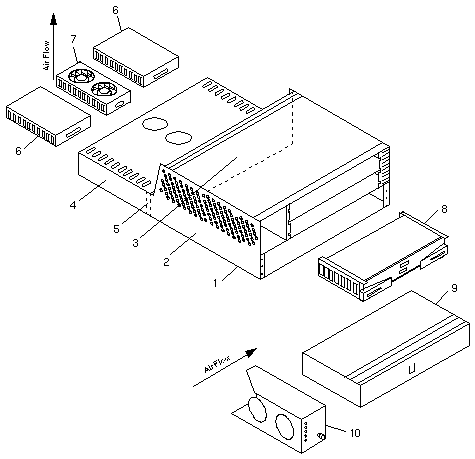

CODE PART # DESCRIPTION
1
1
2
3
-
4
5
-
-
370-2408
370-2431
None
None
370-2724
370-2869
None
370-2870
370-2871
RSM Array 2000/StorEdge A3000 Assembly
Chassis with Backplane FRU
Logic Chassis Assembly
Logic Chassis Backplane
Ribbon Cable, Battery to Backplane
Power Supply Chassis Assembly
Power Supply Chassis Backplane
Power Supply Interface Cable
Power Supply DC Power Cable
6
7
370-2436
370-2432
Power Supply
Power Supply Fan Assembly
8
8
9
10
NS
-
-
-
370-2435
540-3600
370-2434
370-2433
370-2437
None
None
None
Differential SCSI Array Controller without Memory
Differential SCSI Array Controller with Memory
Battery Assembly
Differential SCSI Array Controller Fan Assembly
Mounting Rail Set
Left Rail and Right Rail
Rear Mounting Bracket (×2)
#8-32 × 7/16" Screw
NS
NS
NS
NS
NS
370-2438
370-2439
150-1890
530-1351
530-1343
8MB Processor Memory SIMM
32MB Cache Memory SIMM
Differential Terminator, HD68
10A/250V AC Power Cord, IEC-320-c13 to NEMA 6-15p, 2M
240V AC Power Cord, IEC-320 to Reverse IEC-320
NS
NS
NS
NS
NS
-
-
-
530-1885
530-1886
530-2197
530-2264
565-1397
370-2724
370-2870
370-2871
External SCSI Cable, HD68 to HD68, 2.0 M
External SCSI Cable, HD68 to HD68, 12.0 M
AC Power Cord, AMP Mate-N-Lok to IEC-320
AC Power Cord, AMP Mate-N-Lok to Y IEC-320
Cable FRU Kit
Ribbon Cable, Battery to Backplane
Power Supply Interface Cable
Power Supply DC Power Cable

802-7603 RSM Array 2000 Installation and System Manual
