Sun StorEdge[tm] A5100 Array: Full Components List

Backplane
Disks
Fast Write Cache Card
Fibre Optic Cable
Fibre Optic Hub
GBIC
    Host Bus Adapter/Controller
Interconnect Assembly

Interface Board
Power Supply
Rack Mount Kit
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Backplane
Option # Manufacturing
Part #
Description Substitute
Part #
n/a 501-4372 [F] 7-Slot FC Disk Backplane 501-5316 [N]
Disks
Option # Top Level
Part #
Assembly FRU Manufacturing
Part #
Description Substitute
Part #
X6722A [S] 595-5259 540-4192 [F]

Spud Bracket FRU
w 1.6" Bkt 540-3025
w Plate 340-4428 or 340-6640
or 340-5928 or 340-7269
390-0012 Seagate ST136403FC (36.4GB 10000 RPM FC) 540-4525 [F]
X6711A [S] 595-4972 540-3923 [F]

Spud Bracket FRU
w 1.6" Bkt 540-3025
w Plate 340-4288 or 340-6640
or 340-5928 or 340-7269
370-3678 Seagate ST118273FC (18.2GB 7200 RPM FC) n/a
Fast Write Cache Card
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X6745A [S] 595-5463 375-0087 [F] Sun StorEdge Fast Write Cache n/a
X1075A [S] 595-4488 375-0012 [F] 32 MB NVRAM Board n/a
X6738A [S] 595-5139 375-0087 [F] Sun StorEdge Fast Write Cache n/a
Fibre Optic Cable
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X973A 595-3378 537-1004 [F] Fibre Optical Cable 2 Meter n/a
X978A 595-3379 537-1006 [F] Fibre Optical Cable 15 Meter n/a
X9715A 595-5608 537-1020 [F] Fibre Optical Cable 5 Meter n/a
Fibre Optic Hub
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X6732A 595-4362 370-3012 [F] FC-100 Hub / Sun StorEdge F100 Hub n/a
GBIC
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X6731A 595-4359 370-2303 [F] FC Short Wave GBIC n/a
n/a n/a 370-4379 [F] FC-AL Short Wave GBIC 370-2303 [F]
X6737A 595-5031 370-3722 [F] * FC-AL Long Wave GBIC n/a
* A Fiber Optic Tester (FOT) is required to support sites that use LW GBICs. Reference information about the FOT
Host Bus Adapter / Controller
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
Previous
Part #
X6727A 595-5853 375-3030 [F] PCI Dual FC Network Adapter+ n/a n/a
X6730A 595-4303 501-5266 [F] FC SBus Card (FC100/S) 501-5202 [F] 501-5202 [F]
501-3060 [F]
X6748A 595-5715 375-0118 [F] Compact PCI (cPCI) Dual Channel FC n/a n/a
X6799A 595-5830 375-3019 [F] PCI Single FC Host Adapter n/a n/a
X6729A [S] 595-4685 375-0040 [F] FC PCI Card (FC100/P) n/a n/a
Interconnect Assembly
Option # Manufacturing
Part #
Description Substitute
Part #
n/a 540-2864 [F]
(Consists of 501-2947 + 501-2948)
Interconnect Assembly n/a
Interface Board
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X6734A 595-4358 501-2951 [F] Interface Board n/a
Power Supply
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X9687A 595-4357 300-1295 [F] Zytec EPO71265 310 Watt Power Supply n/a
Rack Mount Kit
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X9654A 595-4940 n/a Sun StorEdge A5x00 68 inch Cabinet Mount Kit n/a
X9655A 595-4951 n/a Sun StorEdge A5x00 72 inch Cabinet Mount Kit n/a
X6735A 595-4551 n/a FC Hub Rack Mount Kit n/a
X9818A 595-4999 n/a 72 inch Sun StorEdge Expansion Cabinet Front Door Kit n/a
X9819A 595-4954 n/a 72 inch Sun StorEdge Expansion Cabinet Cooling Kit n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

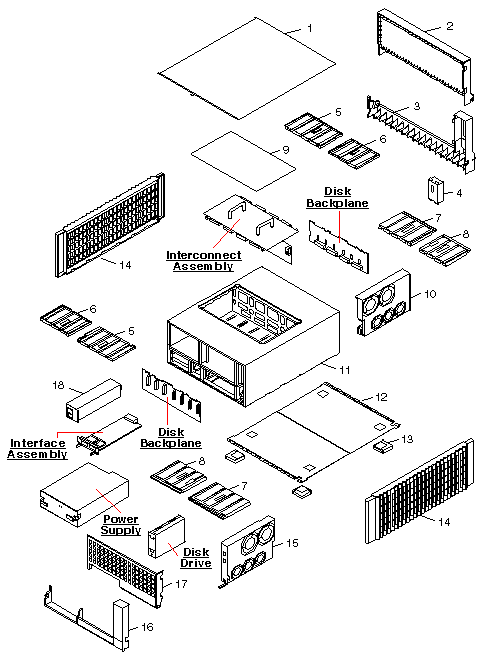

Exploded View


Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
1 540-3344 Top Door Assembly
2 540-2856 [F] Front Door Assembly
3 540-2953 [F]
540-3348
Front Panel Assembly
Front Panel Assembly without Logo
4 370-2311 [F] Display Panel
5 330-2045 Upper Right 1.6" Disk Drive Guide (-05 required)
6 330-1950 Upper Left 1.6" Disk Drive Guide (-05 required)
7 540-2895 Lower Right 1.6" Disk Drive Guide (-04 required)
8 540-2877 Lower Left 1.6" Disk Drive Guide (-04 required)
9 340-3289 Interconnect Board Access Cover
10 540-2858 [F] Front Fan Tray
11 340-3290 Empty Chassis
12 330-2064
330-2163
Front Bottom Cover
Rear Bottom Cover
13 330-2000 Foot
14 330-2106 Vented Side Panel
15 540-2859 [F] Rear Fan Tray
16 540-2954 Rear Panel Assembly
17 540-2857 [F] Rear Door Assembly
18 370-2004 [F] AC Input Filter
NS 240-2690 Key
NS 300-1393 Universal Power Sequencer (72 inch cabinet)
NS 340-3627 Shipping Bracket
NS 340-3899 FC100 Hub Mounting Bracket
NS 340-5262 Right Mounting Rail (68 inch & 72 inch cabinet)
NS 340-5263 Left Mounting Rail (68 inch & 72 inch cabinet)
NS 340-5264 Right Tray (68 inch & 72 inch cabinet)
NS 340-5265 Left Tray (68 inch & 72 inch cabinet)
NS 370-3592 AC Power Cord, AMP Mate-N-Lok to IEC-320
NS 530-2236 Remote Keyswitch Control Cable, 3.2M (56 inch, 68 inch, & 72 inch cabinet)
NS 530-2264 AC Power Cord, AMP Mate-N-Lok to Y IEC-320
NS 530-2674 Power Cord, Harting Han 6HsB to NEMA L6-30P 4M
NS 530-2675 Power Cord, Harting Han 6HsB to IEC309
NS 540-3707 72 inch Sun StorEdge Expansion Rack
NS 540-3279 Empty 1.6 inch Disk Drive Slot Filler
NS 540-3912 Sun StorEdge A5000 Chassis without Skins
