Ultra Enterprise 5000 and 6000

E5000 / E5001 / E5002 / E6000 / E6001 / E6002

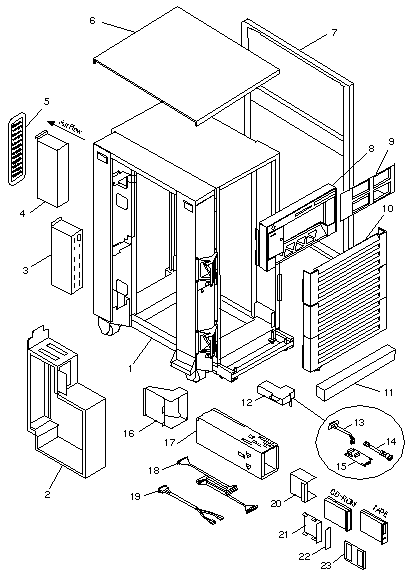

56-inch Data Center Cabinet

CODE PART # DESCRIPTION
1 540-2591 56-inch Data Center Cabinet Assembly
2 340-3259 Fan Tray Support Bracket
3 300-1290
300-1403
Universal AC Power Sequencer
Universal AC Power Sequencer
4
-
540-2709
540-3271
Fan Tray Assembly (-02 with Fingerguards)
Fingerguard Installation Kit for 540-2709-01
5 340-3267 Fan Tray Rear Cover
6 340-3352 Top Panel, Medium Grey
7 340-3354 Side Panel, Medium Grey
8 540-2746
330-1973
330-1983
Top Bezel Assembly
Clear Plastic Label Cover
Blank Filler Panel Insert
9 330-1982 Filler Panel Insert with 4 Tape Drive Cutouts
10 540-2766 Door Assembly with 3 Vented Panels
11 340-3355 Anti-Tilt Panel, Medium Grey
12
13
14
15
370-2161
530-2148
530-2227
501-5329
Keyswitch and LED Assembly
PCB to Remote Keyswitch Cable
Keyswitch Cable
LED Board (replaced 501-2599)
16 340-3260 Peripheral Tray Support Bracket
17
17
18
19
20
21
22
23
540-2711
340-3261
530-2215
530-2216
340-3264
340-3341
330-1939
340-3270
Peripheral Tray Assembly without Peripherals
Peripheral Tray
Internal SCSI Cable, 89 cm
DC Wire Harness
Mounting Bracket
Filler Panel Bracket
Filler Panel
Peripheral Mounting Bracket
NS 330-2014 Power Key (replaced 330-1651)
NS 340-3353 Screw Mounted Rear Panel, Medium Grey
NS 340-3489 Hinged Rear Panel, Medium Grey
NS 530-2265 Power Cord, Harting Han 6HsB to NEMA L6-30P
NS 530-2266 Power Cord, Harting Han 6HsB to IEC309
NS 180-1943 Power Cord, Harting Han 6HsB to NEMA L6-30P
NS 180-1944 Power Cord, Harting Han 6HsB to IEC309
