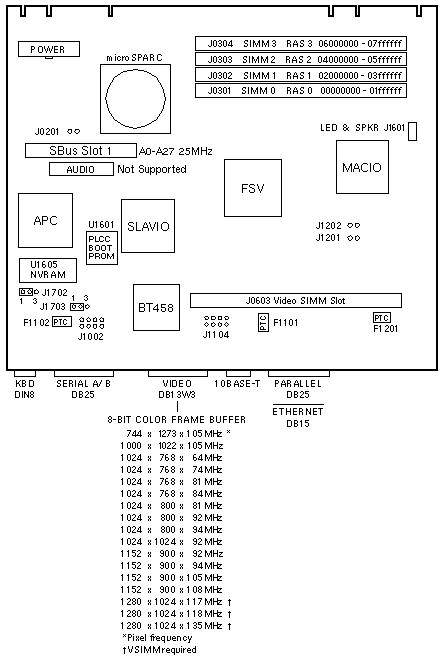

SPARC Xterminal 1

501-2540 501-3025 501-2585
50MHz 0MB FRU
FAB 270-2549		 50MHz 0MB FRU
FAB 270-2928		 50MHz 8MB

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J0201 1-2 Out Pin-1=Gnd / Pin-2=POK
J1002 1-2
3-4
5-6
7-8		 Out
Out
Out
Out		 Test point rxda
Test point txda
Test point rxdb
Test point txdb
J1104 1-2
3-4
5-6
7-8		 Out
Out
Out
Out		 Test point tpe<0>
Test point tpe<1>
Test point tpe<2>
Test point tpe<3>
J1201 1-2
1-2		 Out
In		 1= normal (default)
0= -4.5db
J1202 1-2
1-2		 Out
In		 1=100 Ohm (default)
0=150 Ohm
J1702
J1703
J1702
J1703		 1-2
1-2
2-3
2-3		 In
In
In
In		 RS-423 (default)
RS-423 (default)
RS-232 +12Vdc
RS-232 -12Vdc

Notes

  1. The minimum operating system is X Terminal Software Version 2.1.
  2. The PLCC Boot PROM is not a FRU and is not field replaceable.
  3. The serial ports are not supported.
  4. OBP settings for the tcx framebuffer use the Pixel frequency instead of the Vertical frequency.
  5. Use the OBP setenv command to change the frame buffer resolution:
    ok setenv fcode-debug? true
    ok reset
    ok setenv output-device screen:r1152x900x94
    ok setenv output-device screen:r1024x768x84

Reference

SPARCstation 4 Service Manual, 802-1529.
