System Controller

Sun Fire 3800

501-5563

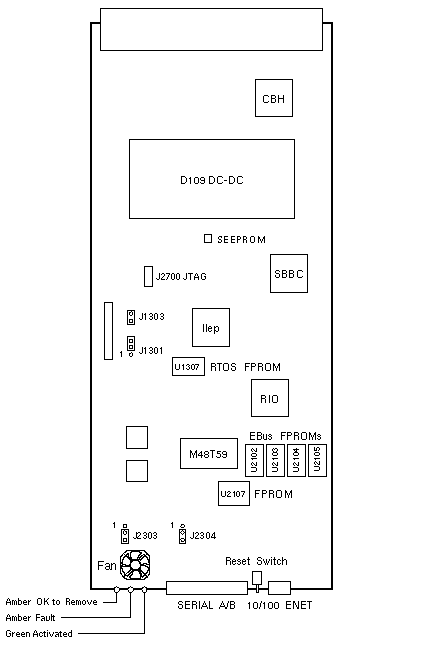

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J1301 1-2
2-3
In
In
Select ROMBO
Select FPROM (default)
J1303 1-2
1-2
In
Out
FPROM write enable (default)
FPROM write protect
J2303* 1-2
2-3
In
In
RS232 +12Vdc
RS423 +5Vdc (default)
J2304* 1-2
2-3
In
In
RS232 -12Vdc
RS423 -5Vdc (default)
* Jumpers J2303 and J2304 must be set identically.

Sun Fire 3800-6800 Codename: Serengeti

Notes

  1. The minimum operating system is Solaris 8 4/01.
  2. System Controller slots are labeled SCC0 and SCC1.
  3. Pressing the Reset switch reloads the System Controller software (attempting a SC reboot first is recommended).
  4. Resetting the System Controller with OBP >/=5.12 can bring down running domains if the System Controller is performing a JTAG operation.
  5. Shut down running domains before resetting the System Controller.
  6. A System Controller reboot does not affect running domains.
  7. InfoDoc 42950 provides a "ftp-only" shortcut for updating the flashprom firmware.

References

  1. Sun Fire Systems Service Manual, 805-7363.
  2. Sun Fire Systems Platform Administration Manual, 805-7373.
  3. Sun Fire System Controller Command Reference Manual, 805-7372.
