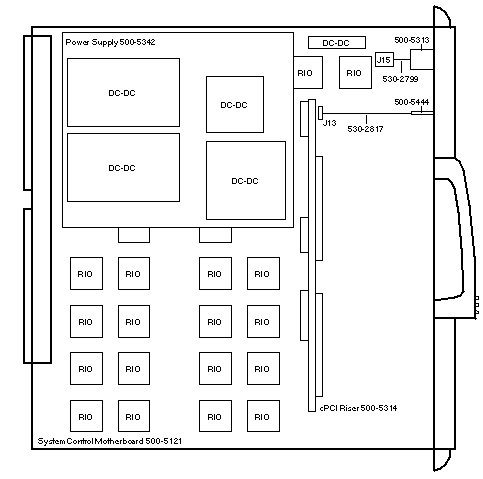

System Control Board

Sun Fire 12K / Sun Fire 15K

501-5994 501-5121
w 440MHz CP1500
w 256MB Memory		 FRU w/o CP1500
w/o Memory

Notes

  1. The minimum operating system is Solaris 8 10/01.
  2. System Control Board slots are labeled SC0 and SC1.
  3. System Control Peripheral slots are labeled SCPER0 and SCPER1.
  4. The System Control Board uses CP1500 501-5473 with different OBP.
  5. CP1500 on the system controller requires memory.
  6. A CP1500 part number with Sun Fire 12K / 15K OBP is not available.
  7. Flash update 501-5473 for use as the System Control Board.

References

  1. Sun Fire 15K Installation Manual, 806-3511.
  2. Sun Fire 15K Service Manual, 806-3512.
