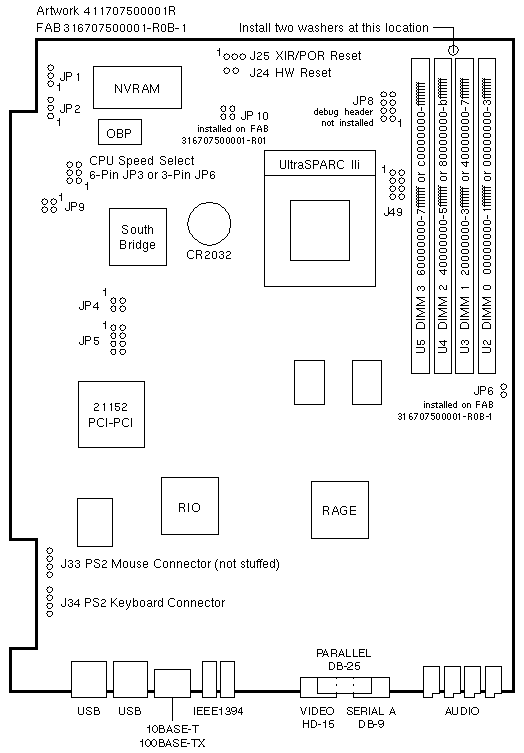

Sun Blade 150
A41
| 375-3088 |
375-3063 |
375-3084 |
0MB FRU
w/o UltraSPARC IIi |
0MB FRU
550MHz UltraSPARC IIi
100-7192 |
0MB FRU
650MHz UltraSPARC IIi
527-1023 |
Jumper Settings
| JUMPER |
PINS |
SETTING |
DESCRIPTION |
| JP1 |
1-2
2-3 |
In
In |
Select Flash PROM (default)
Select ROMBO |
| JP2 |
1-2
2-3 |
In
In |
OBP write protected (default)
OBP write enabled |
| JP4 |
1-2
3-4 |
In
Out |
UltraSPARC IIe CPU (default)
UltraSPARC IIe CPU (default) |
| JP5 |
1-8 |
Out |
UltraSPARC IIe CPU |
| JP6 |
1-2
1-2 |
Out
In |
Disable Registered DIMM (default)
Enable Registered DIMM |
| JP8 |
1-4 |
Out |
Debug header |
| JP9 |
1-4 |
Out |
OBP Configuration |
| J49 |
1-8 |
Out |
UltraSPARC Debug header |
|
JP3 Speed Select Jumper - FAB 316707500001-R0B-1
| 1-2 |
3-4 |
5-6 |
DESCRIPTION |
UltraSPARC IIi FRU
(Codename = Phantom)
|
| In |
In |
In |
550MHz UltraSPARC IIi |
100-7192 |
| Out |
Out |
Out |
650MHz UltraSPARC IIi |
527-1023 |
JP6 Speed Select Jumper - FAB FAB 316707500001-R01
| 1-2 |
2-3 |
DESCRIPTION |
UltraSPARC IIi FRU
(Codename = Phantom)
|
| In |
Out |
550MHz UltraSPARC IIi |
100-7192 |
| Out |
In |
650MHz UltraSPARC IIi |
527-1023 |
|
Sun Blade 150 Codename: Grover+ |
Notes
- The minimum operating system is Solaris 8 2/02.
- The minimum memory requirement is one DIMM in U2.
- The memory installation sequence is U2, U3, U4, and U5.
- Configurations of one, two, and four DIMMs are supported.
Configurations of three DIMMs are not supported.
- Each DIMM slot addresses 1GB with >=550MHz UltraSPARC IIi.
UltraSPARC IIi Notes
- The 550-650MHz UltraSPARC IIi architecture is not based on the
270-440MHz UltraSPARC IIi (Sabre and Sapphire-Red).
- The 550-650MHz UltraSPARC IIi architecture is based on the
500MHz UltraSPARC IIe (Hummingbird).
- The 550-650MHz UltraSPARC IIi OBP banner-name is UltraSPARC IIe.
- The 550-650MHz UltraSPARC IIi is labeled UltraSPARC IIi+.
Reference
-
Sun Blade 150 Service Manual, 816-4379.
|
