Sun Blade 100

A36

375-0096 375-3061 375-3092
0MB FRU
FAB R0G
w/o UltraSPARC IIe
FCC A chassis tray
0MB FRU
FAB R01
w/o UltraSPARC IIe
FCC B chassis tray
0MB FRU
FAB R01
w/o UltraSPARC IIe
FCC A chassis tray
375-3123 375-3106
0MB FRU
FAB R0G
w/o UltraSPARC IIe
w/o chassis tray
0MB FRU
FAB R0A
w/o UltraSPARC IIe
w/o chassis tray

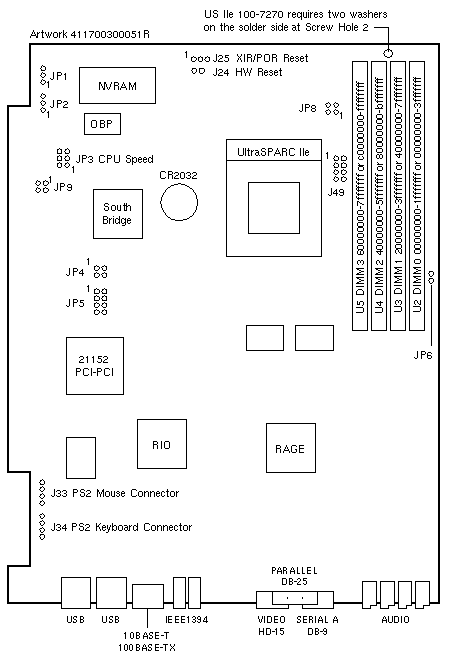

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
JP1 1-2
2-3
In
In
Select Flash PROM (default)
Select ROMBO
JP2 1-2
2-3
In
In
OBP write protected (default)
OBP write enabled
JP4 1-2
3-4
In
Out
UltraSPARC IIe CPU (default)
UltraSPARC IIe CPU (default)
JP5 1-8 Out UltraSPARC IIe CPU
JP6 1-2
1-2
Out
In
Disable Registered DIMM (default)
Enable Registered DIMM
JP8 1-4 Out Debug header
JP9 1-4 Out OBP Configuration
J49 1-8 Out UltraSPARC Debug header

JP3 Speed Select Jumper Settings

1-2 3-4 5-6 DESCRIPTION UltraSPARC IIe (Codename = Hummingbird)
Out Out Out 500MHz UltraSPARC IIe 100-6471 or 100-7270

PCI Slot Device Paths

Single Function PCI Cards
PCI Slot MHz Device Path
3
33 MHz
/pci@1f,0/pci@5/<device>@0
2
33 MHz
/pci@1f,0/pci@5/<device>@1
1
33 MHz
/pci@1f,0/pci@5/<device>@2

Multi Function PCI Cards
PCI Slot MHz Device Path
3
33 MHz
/pci@1f,0/pci@5/pci@0/<device>
2
33 MHz
/pci@1f,0/pci@5/pci@1/<device>
1
33 MHz
/pci@1f,0/pci@5/pci@2/<device>



Sun Blade 100 Codename: Grover

Board Notes

  1. 375-3092 (ECO WO_22711, December 2001) consists of the board FAB of 375-3061 and the Class A chassis from 375-0096. 375-3092 resolves the problem of attempting to install 375-3061 in a system that shipped originally with 375-0096, since 375-3061 is incompatible with the Class A chassis.
  2. 375-0096 and 375-3061 are not mutually compatible. Neither board can be installed in a system that originally shipped with the other. Order 375-3092 instead.
  3. Boards labeled "375-0096-06" are functionally equivalent to 375-3061-01.
  4. The FCC Class B chassis is marked with the letter A on the EZ Label.
  5. The ST320011A latch cover change is marked with B on the EZ Label.

Notes

  1. The minimum operating system is Solaris 8 10/00.
  2. The minimum memory requirement is one DIMM in U2.
  3. The memory installation sequence is U2, U3, U4, and U5.
  4. Each DIMM slot addresses 512MB with 500MHz UltraSPARC IIe.
  5. Each DIMM slot addresses 1GB with >=550MHz UltraSPARC IIe.
  6. OBP <=4.5v0 incorrectly reports errors as DIMM1 (U2) to DIMM4 (U5).
  7. OBP 4.5v9 correctly reports errors as DIMM0 (U2) to DIMM3 (U5).

References

  1. Sun Blade 100 Getting Started, 806-3415.
  2. Sun Blade 100 Service Manual, 806-3416.
  3. Sun Blade 100 Motherboard Update and Sun PGX64 Patch Procedures, 816-7660.
