SPARCserver 1000

501-2336
0MB FRU
w/o SPARC Module

Backplane Guide Pins

Remove two screws from the System Board XDbus connector before installing the system board in backplanes with guide pins. Guide pins were added to the backplane in March 1994 by ECO WO_05457 .

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J1200
J1201
J1200
J1201
1-2
1-2
2-3
2-3
Out
Out
In
In
RS-423
RS-423
RS-232 (+12V) (default)
RS-232 (-12V) (default)

Configured System Boards

PART
NUMBER
MAIN
MEMORY
SIMM
SIZE
SPARC
MODULE
501-2245-03 32MB 8MB 1 SM41
501-2247-03 64MB 8MB 2 SM41
501-2248-03 128MB 32MB 2 SM41
501-2429-xx 64MB 8MB 2 SM41
501-2430-xx 512MB 32MB 2 SM41
501-2245-04 32MB 8MB 1 SM51
501-2247-04 64MB 8MB 2 SM51
501-2248-04 128MB 32MB 2 SM51
501-2736-xx 64MB 8MB 2 SM61
501-2737-xx 128MB 32MB 2 SM61

Notes

  1. The minimum operating system is Solaris 2.2 (SunOS 5.2).
  2. Install the highest level Boot PROM set in System Board 0.
  3. Use SPARC module and SBus board Standoff 330-1664-01.
  4. A root partition >2GB is not supported by Sun-4c, 4m, or 4d systems.

Memory Configuration Notes

  1. The minimum memory configuration is 4 SIMMs in Group 0.
  2. Use 8MB SIMM 501-1817 and 32MB SIMM 501-2196.
  3. Install all Group 0 SIMMs on all system boards from the lowest board slot number to the highest. Then install SIMMs in Group 1 on all system boards, followed by Group 2 and Group 3. Refer to the Memory Module Installation Guide for installation performance guidelines.

References

  1. SPARCserver 1000 Installation Manual, 801-2893.
  2. SPARCserver 1000 System Board Manual, 801-2900.
  3. Memory Module (SIMM) Product Note, 801-5345.
  4. Memory Module Installation Guide, 801-2030.
  5. BugID 4035259 filed against root partition >2GB.

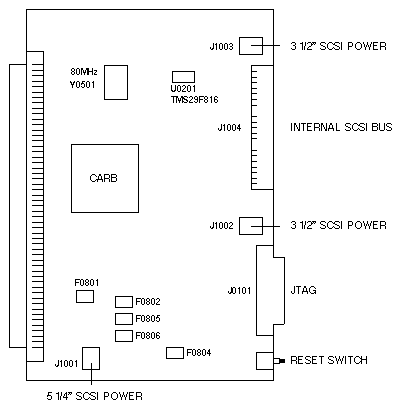

40MHz Control Board

SPARCserver 1000

501-1979 501-2412
Programmed Unprogrammed

Notes

  1. The 40MHz Control Board is not compatible with the SS1000E System Board.
  2. The HOSTID and Ethernet Address are programmed into a 2KB x 8-bit Flash EEPROM in the TMS29F816 at U0201. The TMS29F816 is not field replaceable.
  3. The HOSTID and Ethernet Address are downloaded from the control board to the NVRAM on all system boards during POST.
  4. If the control board EEPROM content is invalid, the values stored in the NVRAM on System Board 0 are used.
  5. The Yellow LED on the keyswitch interface board is ON if the control board EEPROM content is invalid.
  6. Use the update-system-idprom OBP command to download the contents of the NVRAM on System Board 0 to a control board with an invalid EEPROM. OBP 2.11 is required.
  7. Use the following command sequence to invalidate the control board EEPROM:
    ok patch noop call update-system-idprom
    ok patch noop call update-system-idprom
    ok patch call noop update-system-idprom
    Power the system off and remove the Control Board.
  8. Use the following commands to change the NVRAM parameter that defines the location of the master system board:
    ok clear-master-nvram
    ok reset
