8-Slot SCSI Disk Backplane

StorEdge A1000 / StorEdge D1000

501-4560

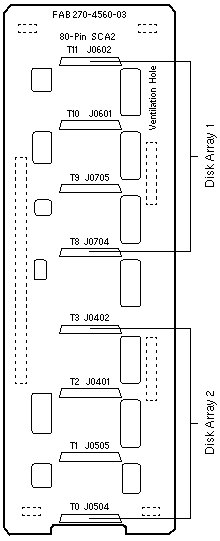

Front View

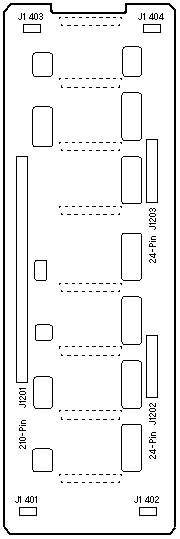

     Rear View

StorEdge D1000 Controller Address Settings

SWITCH DIP SETTING DESCRIPTION
SW1 1 Up
Down		 Array 1 drive addresses 8-11 (default)
Array 1 drive addresses 0-3
SW1 2 Up
Down		 Array 2 drive addresses 8-11
Array 2 drive addresses 0-3 (default)
