Multi-Tape Backup Tray

825 826
20GB 4 mm Tape
w/o Tape Tray
20GB 4 mm Tape
1 Tape Tray

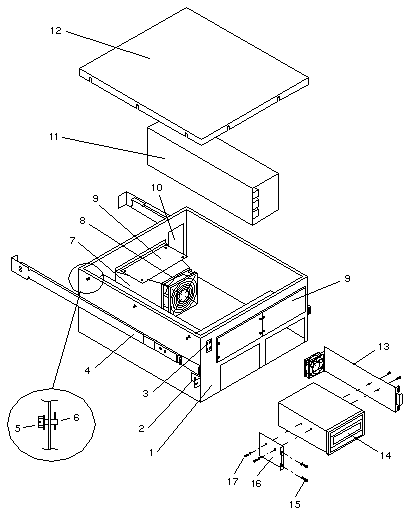

CODE PART # DESCRIPTION
1 340-2566 Chassis Enclosure
2 340-2681 Tray Retaining Bracket (obsolete)
2 340-2862 Tray Retaining Bracket
3 150-1806 SCSI Address Select Switch
4
4
370-1385
370-1385
-01 Slide Rail Set, Inner 651.2 mm, Outer 742.7 mm
-03 Slide Rail Set, Inner 717.3 mm, Outer 742.7 mm
5 None Cross-Drilled Screw (use 240-1732-01)
6 None Screw Retaining Clip
7 340-2564 Fan Enclosure
8 370-1214 DC Fan, 105 CFM
9 340-2641 Filler Panel (obsolete)
9 340-2835 Full-Height Filler Panel
9 340-2859 Half-Height Filler Panel
9 340-3369 Half-Height Filler Panel
10 340-2601 Connector Panel
11 300-1096 269 Watt Power Supply
11 300-1312 269 Watt Nordic Power Supply (Available 12/95)
12 340-2565 Top Cover
13
13
540-2607
540-2606
Fan, Wire Harness, and Bracket Assy, 20GB 4 mm
Fan and Wire Harness Assembly
14 370-1617 20GB 4 mm Tape Drive, Full-Height, Black Bezel
15 240-1372 M4 0.7 × 10 mm Screw
16 340-2148 Peripheral Mounting Bracket
17 240-1530 M3 0.5 × 6 mm Screw for 10GB, 14GB, and 20GB
NS 150-1785 External Active Terminator, HD50
NS 340-3044 4 mm Tape Drive Padded Shipping Bracket
NS 370-1751 4 mm Tape Drive Shipping Bracket (obsolete)
NS 530-1849 Address Select Switch Cable (obsolete)
NS 530-1891 Internal SCSI Bus Cable, 1.8M
NS 530-1892 DC Wire Harness
NS 530-2058 4-Drive Address Select Switch Cable
NS 540-2252 Front Panel, 56-inch Rack with 4 Tape Drive Cutouts

800-7340 Multi-Tape Backup Tray Service Manual
