Multi-Tape Backup Tray

6273 6274 6275 6276
16-32GB 4 mm Tape
Light Grey
w/o Tape Tray
16-32GB 4 mm Tape
Light Grey
w Tape Tray
16-32GB 4 mm Tape
Medium Grey
w/o Tape Tray
16-32GB 4 mm Tape
Medium Grey
w Tape Tray

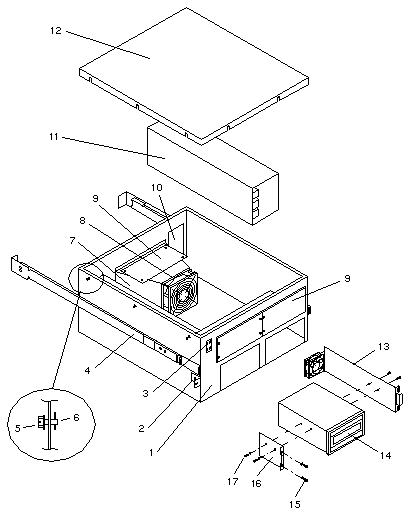

CODE PART # DESCRIPTION
1 340-2566 Chassis Enclosure
2 340-2862 Tray Retaining Bracket
3 150-1806 SCSI Address Select Switch
4 370-1385 -03 Slide Rail Set, Inner 717.3 mm, Outer 742.7 mm
5 None Cross-Drilled Screw (use 240-1732-01)
6 None Screw Retaining Clip
7 340-2564 Fan Enclosure
8
NS
NS
370-1214
340-0265
240-1740
DC Fan, 105 CFM
Fan Fingerguard
#6-32 × 2" Screw
9 340-2835 Full-Height Filler Panel
9 340-2859 Half-Height Filler Panel
9 340-3369 Half-Height Filler Panel
10 340-2601 Connector Panel
11
11
300-1096
300-1312
269 Watt Power Supply
269 Watt Nordic Power Supply (Available 12/95)
12 340-2565 Top Cover
13
13
540-2607
540-2606
Fan, Wire Harness, and Bracket Assembly
Fan and Wire Harness Assembly
14
14
370-2180
370-2201
16-32GB 4 mm DDS-2 Autoloader, Med Grey Bezel
16-32GB 4 mm DDS-2 Autoloader, Black Bezel
15 240-1372 M4 0.7 × 10 mm Screw
16 340-2148 Peripheral Mounting Bracket
17 240-1530 M3 0.5 × 6 mm Screw
NS 150-1785 External Active Terminator, HD50
NS 340-3044 4 mm Tape Drive Shipping Bracket
NS 370-2181 Blank 4 mm DDS-2 Tape, 120M
NS 370-1613 4 mm Cleaning Tape
NS 370-1683 4 mm 4-Tape Magazine
NS 530-1891 Internal SCSI Bus Cable, 1.8M
NS 530-1892 DC Wire Harness
NS 800-7340 Multi-Tape Backup Tray Service Manual
