SunCD 4
Options 6151 / 6152
| 370-2082 |
Toshiba XM-5301B
1 5/8" Height
Light Grey Bezel
SPARCstorage UniPack |

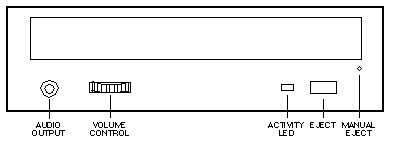

| Front View |
 |
|

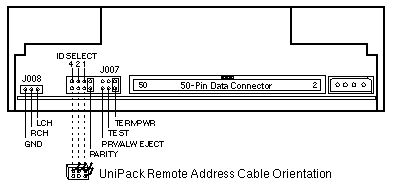

| Rear View |
 |
Notes
- The minimum operating system is Solaris 1.1.1 or Solaris 2.3.
- The drive is not supported in the SC2000.
- The SPARCstorage UniPack requires Ferrite 150-1480.
- The drive does not function on its left side with the Eject button up.
References
SPARCstorage UniPack User's Guide, 802-3228.
-
Specification Sheet, 802-4064.
SunCD 4
SS4 / SS5 / SS20 / SS1000 / SC2000
A11 / A12 / A14 / E3000 / E4000 / E5000 / E6000
Options 6151 / 6152 / 6153 / 6154 / 6155 / 6156
| 370-2101 |
370-2102 |
Toshiba XM-5401B
1 5/8" Height
Black Bezel |
Toshiba XM-5401B
1 5/8" Height
Light Grey Bezel |
| 370-2103 |
370-2203 |
540-2852 |
Toshiba XM-5401B
1 5/8" Height
SS1000 Bezel |
Toshiba XM-5401B
1 5/8" Height
Medium Grey Bezel |
Toshiba XM-5401B
SS4 / SS5 / SS20
FRU Assembly |
| Front View |
|
|
| Rear View |
|
Notes
- The minimum operating system is Solaris 1.1.1 or Solaris 2.3.
- The SS1000 uses a custom sized bezel.
- Use Bezel Kit 555-1334 to change bezel types.
- This drive is not compatible with SS4, SS5, or SS20 chassis 340-2915.
Reference
-
SPARCstorage UniPack User's Guide, 802-3228.
|
