4-8GB 4 mm DDS-2 Tape Drive

SS1000 / A11 / A12 / A14 / E150
E3000 / E4000 / E5000 / E6000 / E3500 / E4500 / E5500 / E6500

Options 6253 / 6254 / 6255 / 6256 / 6259 / 6260

370-2176 370-2177 370-2178
Conner CTD8000
Light Grey Bezel		 Conner CTD8000
Medium Grey Bezel		 Conner CTD8000
SS1000 Bezel

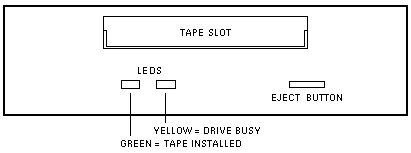

Front View

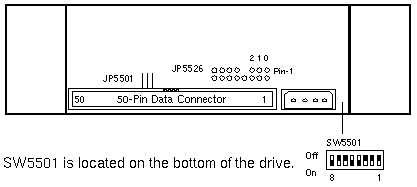

Rear View

Notes

  1. The minimum operating system is Solaris 1.1.1 or Solaris 2.3.
  2. The Blank DDS-2 120 Meter Tape part number is 370-2181-01.
  3. The Cleaning Kit part number is 370-1613-01.
  4. The Bezel Kit part number is 555-1339.

Reference

DDS-2 Tape Drive Specification, 802-5324.

Jumper and Switch Settings

JP5501
PIN SETTING DESCRIPTION
1-2 Out Not used
2-3 Out Not used

JP5526
PIN SETTING DESCRIPTION
1-2 As required Enable SCSI ID 0 = 20
3-4 As required Enable SCSI ID 1 = 21
5-6 As required Enable SCSI ID 2 = 22
8-10 Out Self test
11-12 Out Active termination
13-14 Out Reserved
15-16 Out TERMPWR

SW5501
SWITCH SETTING DESCRIPTION
1 Off Enable SCSI ID 0 = 20
2 Off Enable SCSI ID 1 = 21
3 Off Enable SCSI ID 2 = 22
4 On Enable SCSI-2 mode
5 On Enable Parity
6 Off Enable data compression
7 Off Reserved for factory use
8 On Enable self test


4-8GB 4 mm DDS-2 Tape Drive

Options 6261 / 6262 / 6263 / 6264 / 6265
TAP4MM-010A / TAP4MM-020A

370-2375
Seagate STD18000N
Light Grey Bezel

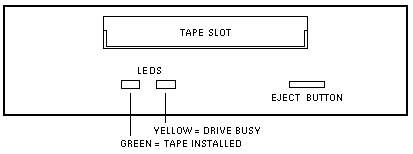

Front View

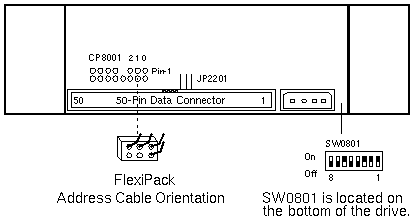

Rear View

Notes

  1. The minimum operating system is Solaris 1.1.1 or Solaris 2.3.
  2. The Blank DDS-2 120 Meter Tape part number is 370-2181-01.
  3. The Cleaning Kit part number is 370-1613-01.

Reference

DDS-2 Tape Drive Specification, 802-7790.

Jumper and Switch Settings

JP2201
PIN SETTING DESCRIPTION
1-2 Out Not used
2-3 Out Not used

CP8001
PIN SETTING DESCRIPTION
1-2 As required Enable SCSI ID 0 = 20
3-4 As required Enable SCSI ID 1 = 21
5-6 As required Enable SCSI ID 2 = 22
7-8 n/a Reserved
9-10 Out Reserved
11-12 Out Active termination disabled
13-14 Out Reserved
15-16 Out TERMPWR disabled

SW0801
SWITCH SETTING DESCRIPTION
1 Off Enable SCSI ID 0 = 20
2 Off Enable SCSI ID 1 = 21
3 Off Enable SCSI ID 2 = 22
4 On Allow non-MRS tapes
5 On Enable parity
6 Off Enable data compression
7 On Enable datmon upon power on
8 On Enable self test
